Ultra Low Temperature Freezers
Download Product Brochure: VS-86L50 VS-86L108 VS-86L358 VS-86L458S VS-86L568S VS-86L708S VS-86L818S VS-86W100 VS-86W485 VS-86L580BS VS-86L720BS, VS-86L860BS Manual: VS-86L108 VS-86L358 VS-86L458S VS-86L568S, VS-86L860BS, Video Manual, and Warranty
SKU: VS-86L50 VS-86L108 VS-86L358 VS-86L458S VS-86L568S VS-86L708S VS-86L818S VS-86W100 VS-86W485 VS-86L580BS VS-86L720BS VS-86L860BS

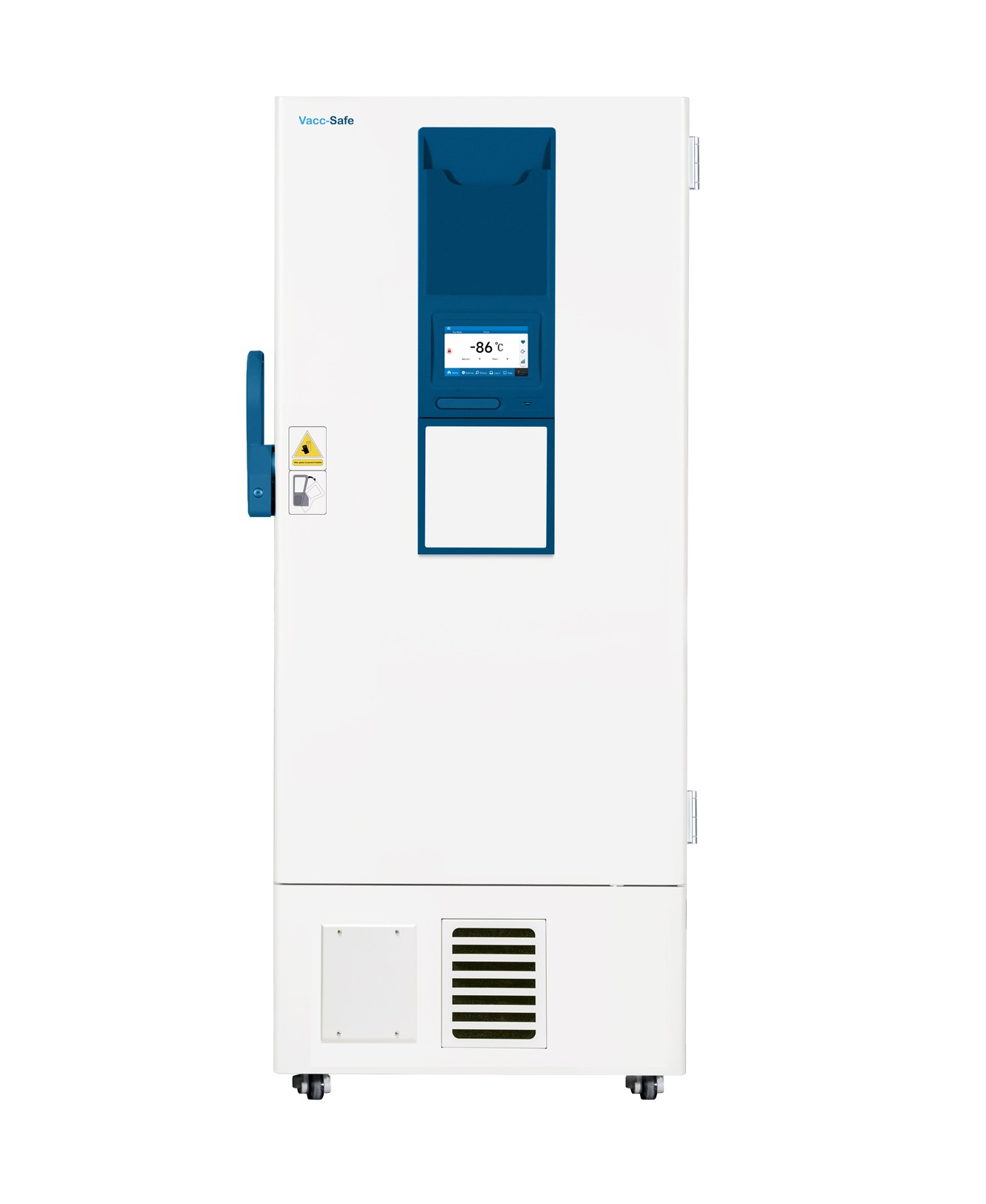

Vacc-Safe ULT Freezers
Select size:
Vacc-Safe DualGuard ULT freezer can be used for the storage and protection of temperature sensitive samples and valuable pharmaceutical products. Using two independent refrigeration systems, if one system fails, the other can maintain the freezer’s temperature uniformly in the -80°C range.
- -86 to -40°C Ultra Low Freezer
- Fast Cabinet Pull Down
- Double Inner Doors
- Racks not included

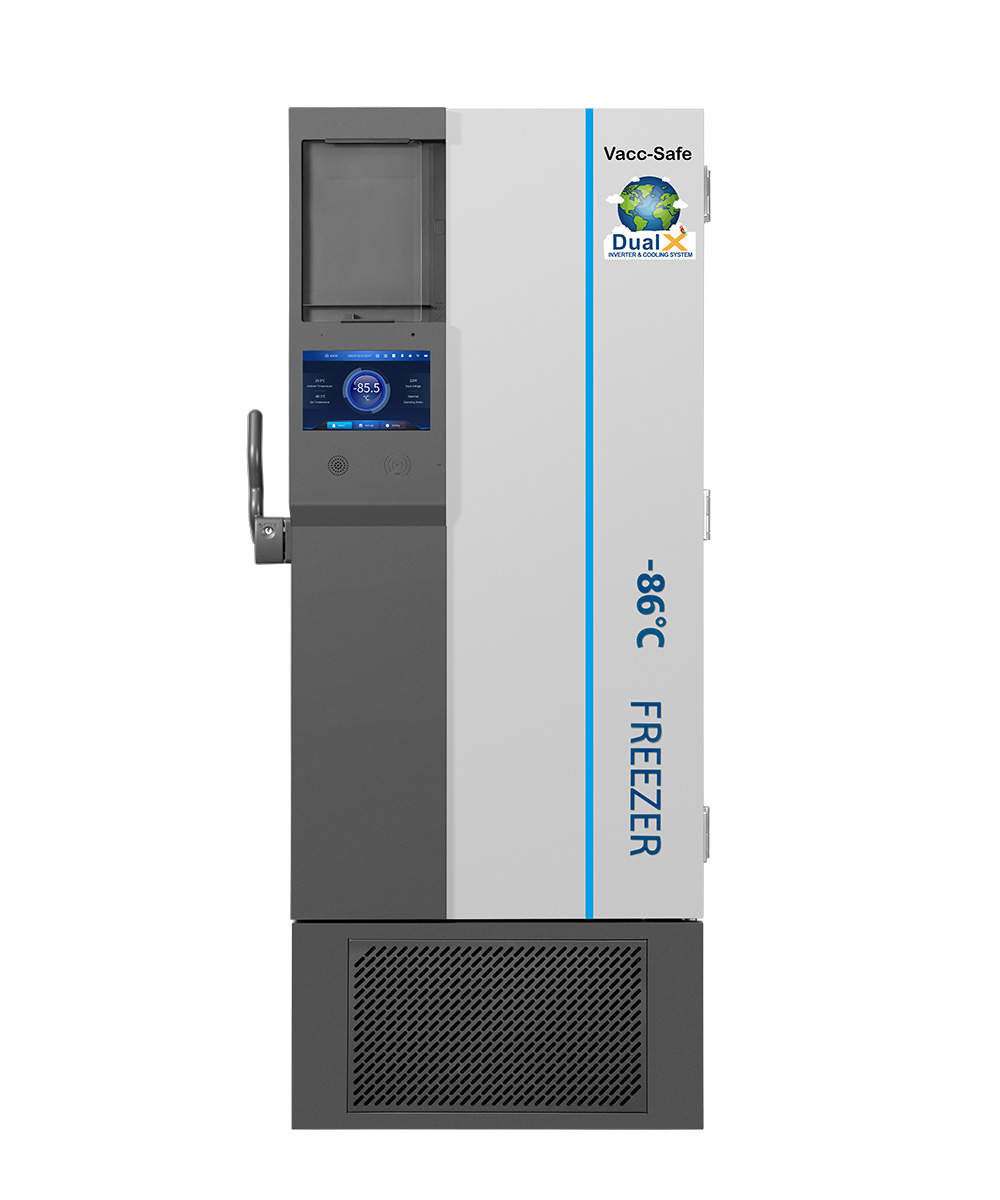

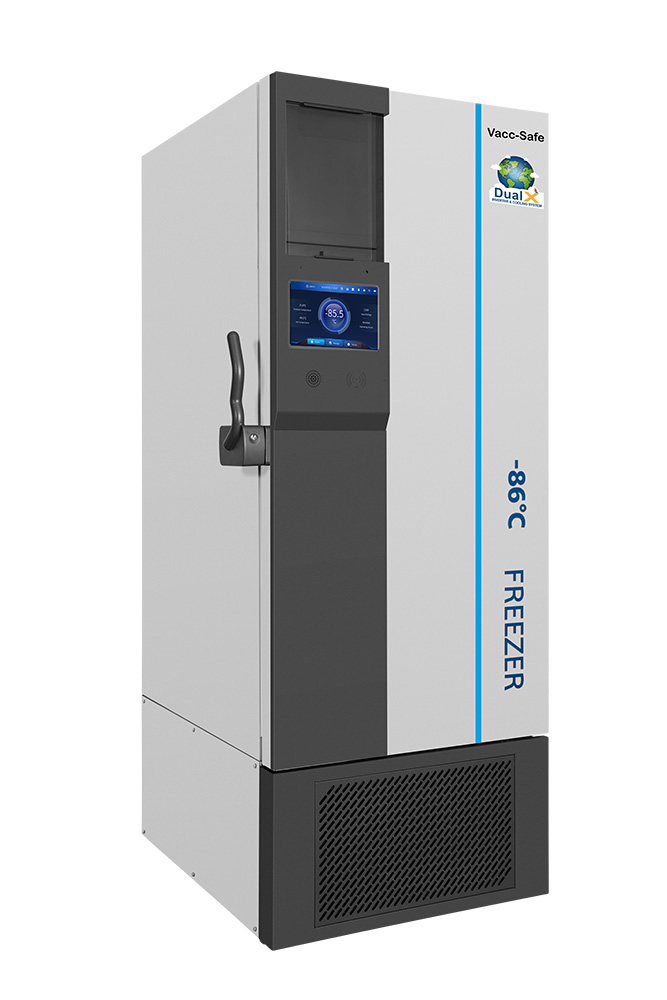

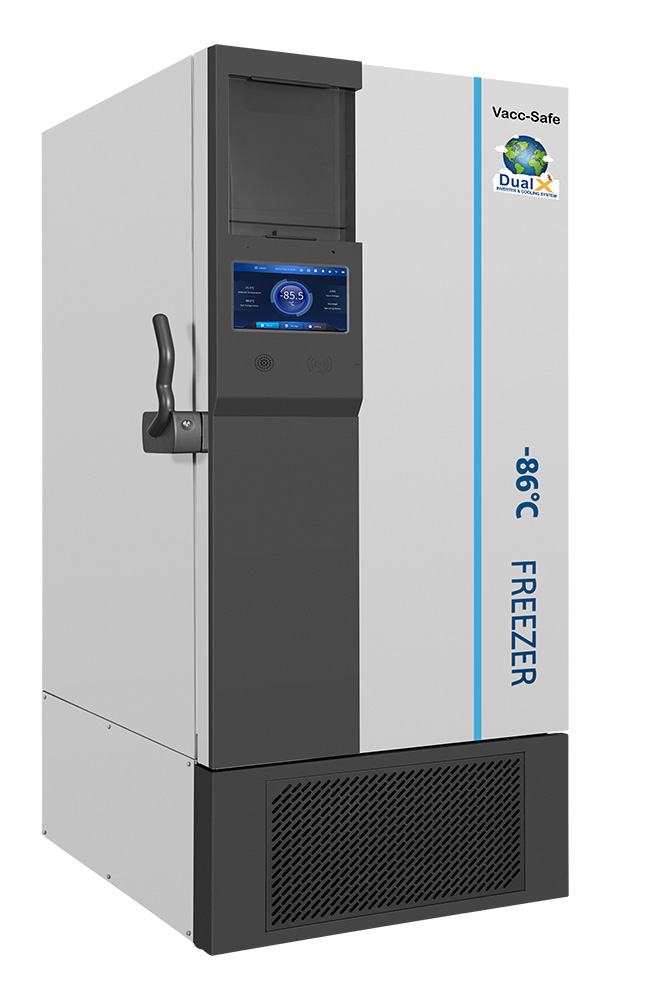

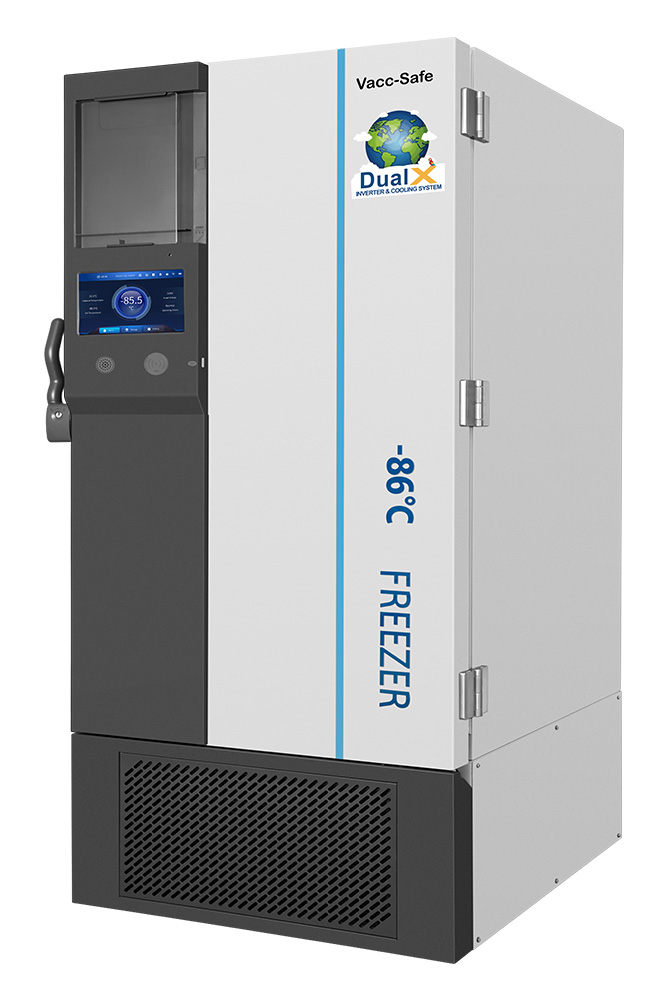

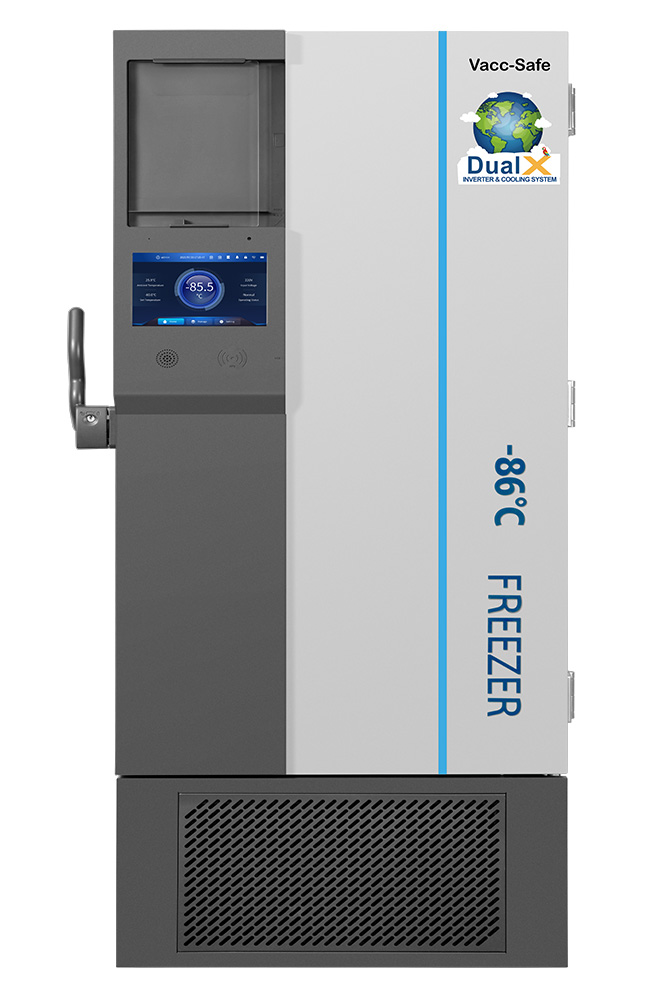

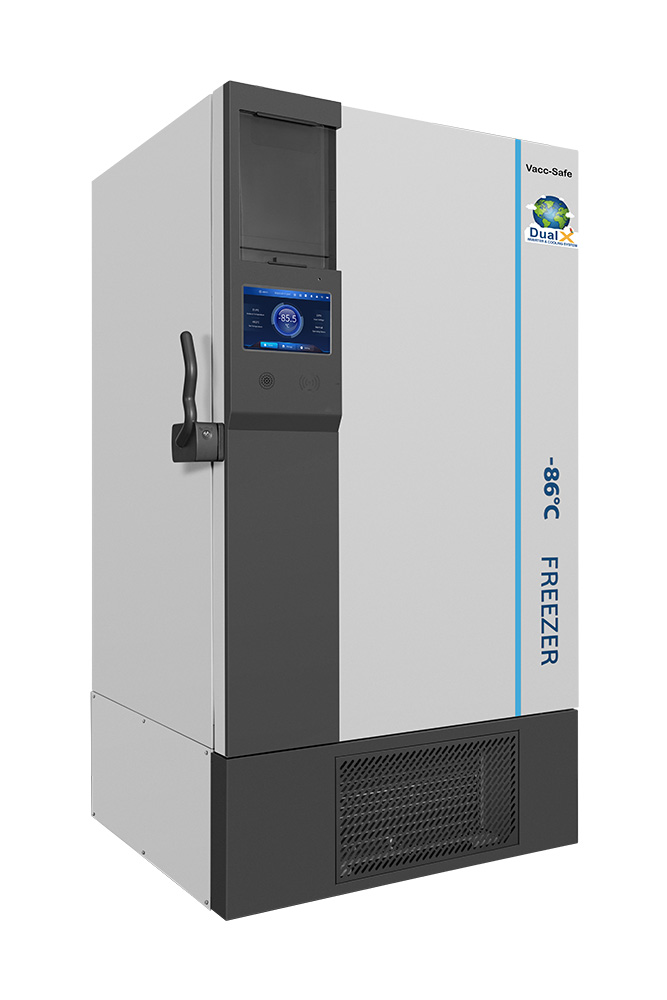

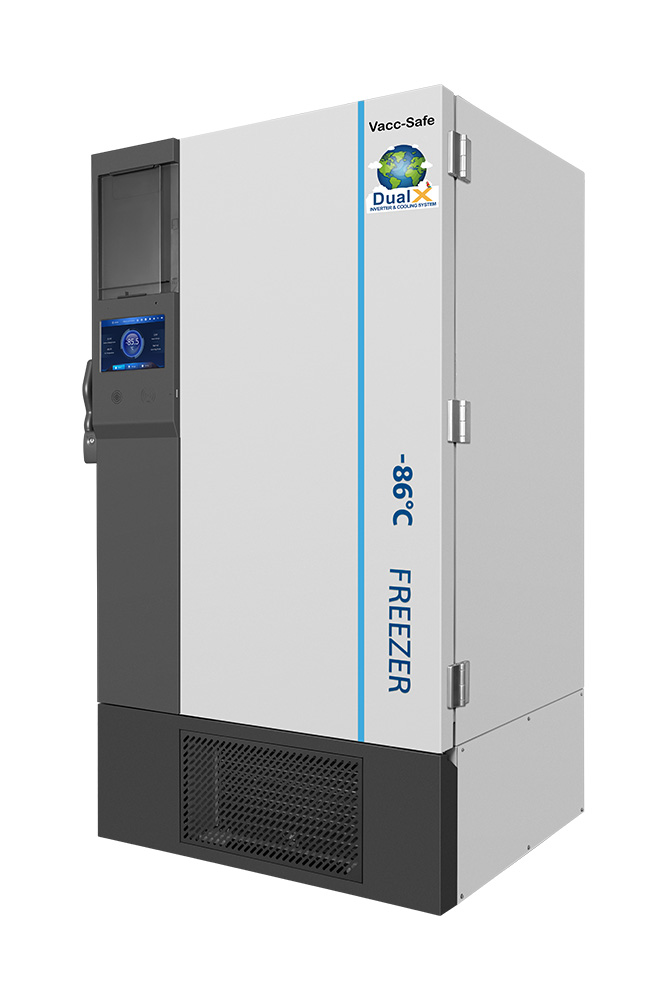

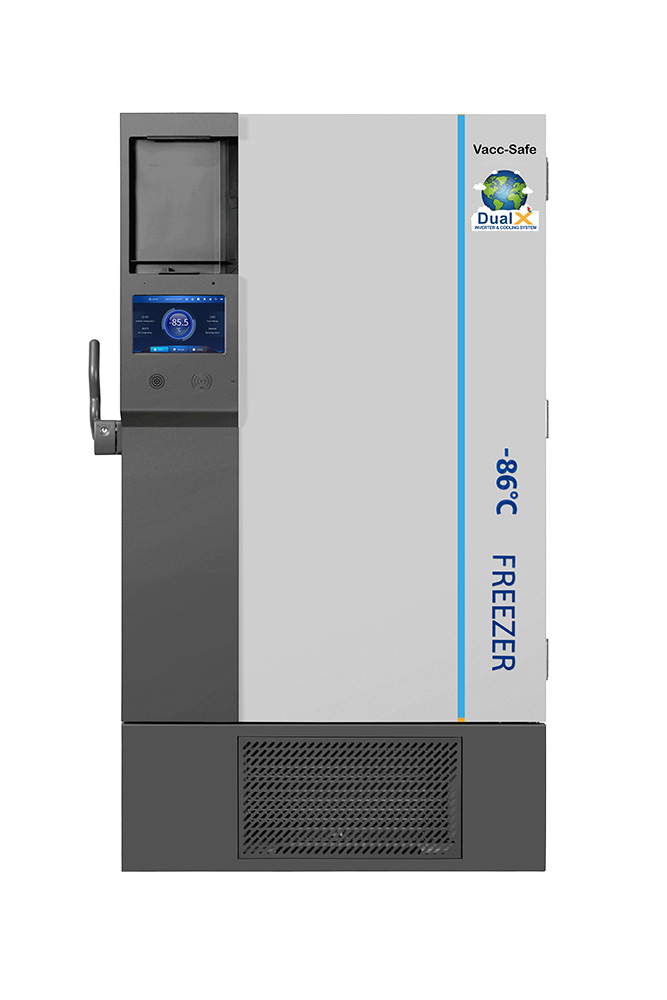

VS-86L580BS, VS-86L720BS, VS-86L860BS: Vacc-Safe Dual X ULT freezers can be used for the storage and protection of temperature sensitive samples and valuable pharmaceutical products with superior temperature uniformity.
Download Product Brochure: VS-86L50 VS-86L108 VS-86L358 VS-86L458S VS-86L568S VS-86L708S VS-86L818S VS-86W100 VS-86W485 VS-86L580BS VS-86L720BS, VS-86L860BS Manual: VS-86L108 VS-86L358 VS-86L458S VS-86L568S, VS-86L860BS, Video Manual, and Warranty
Vacc-Safe® ULT Freezers with a 5 year warrenty:
VS-86L108, VS-86L358, VS-86L458S, VS-86L568S,
VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
Key benefits
Temperature Logging
Enables users to download historical temperature data for compliance/auditing purposes.
VS-25L106/308/518, VS-40L106/308/518, VS-86L108/358
Other cold storage units
- Requires external temperature logger
Increased Product Lifespan
Dissipates heat 20% more effectively to improve life expectancy of core parts.
Other cold storage units
- Retain more heat leading to early part burn-out

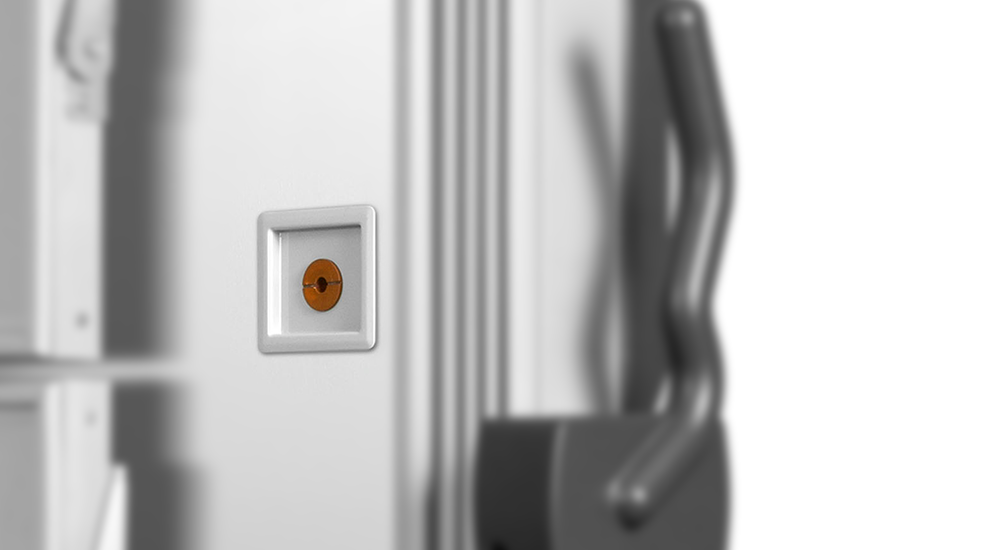

Heated Pressure Equalization Port
When doors are opened and closed on Ultra Low Freezers a vacuum is created as the warmer air introduced is cooled down. Equalisation ports allow the unit to draw in a small amount of air to equalise the internal space allowing the door to be opened faster than units without this function.
VS-86L358, VS-86L458S, VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
Other cold storage units
- Main door slow to open

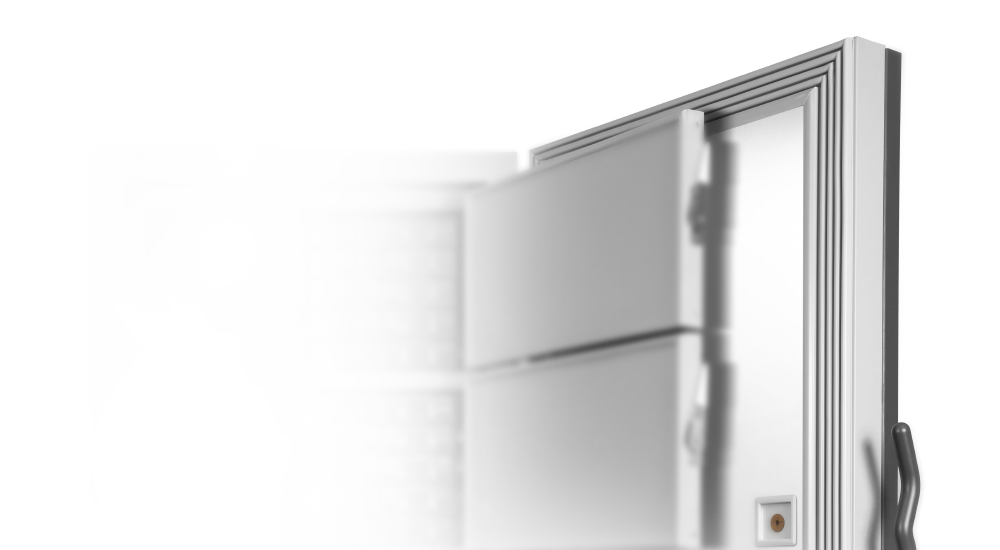

Multi-layer Sealing Structure
Multi-layers gaskets provide a tight seal between the inner doors and outer door, reducing heat exchange rate and retaining the inner temperature better when there is power failure.
Other cold storage units
- Use more energy to retain inner temperature due to poorer seal

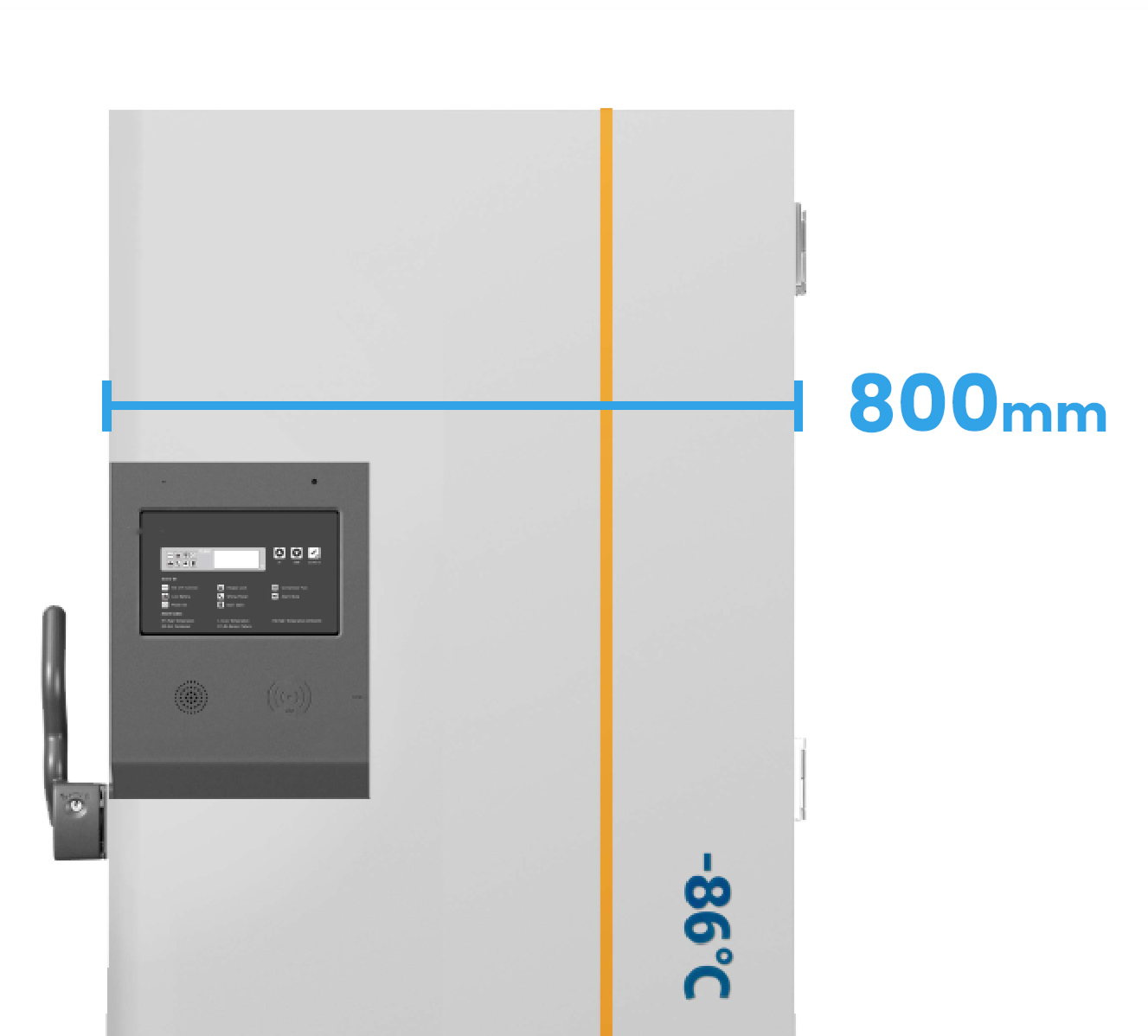

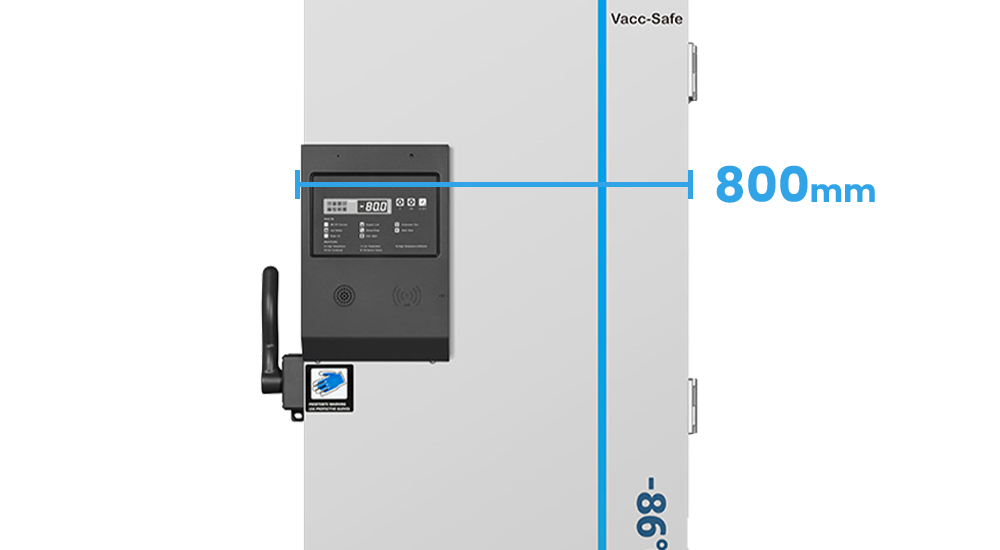

Slim Cabinet Design
Slim cabinet design for space utilisation. Unit can pass through a 750mm wide door.
VS-86L108, VS-86L358, VS-86L458S
..
Other cold storage units
- Bulky cabinet designs take up valuable space

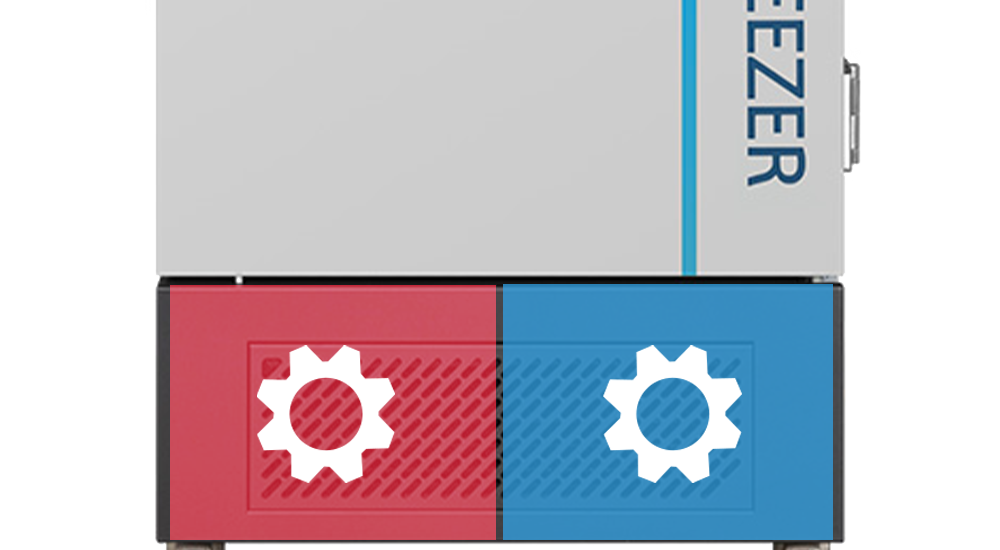

Twin Refrigeration Systems
If one system fails, the other can maintain the freezer’s temperature uniformly in the -70°C range.
VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
..
Other cold storage units
- No backup in place for a system failure to maintain refrigerator temperature

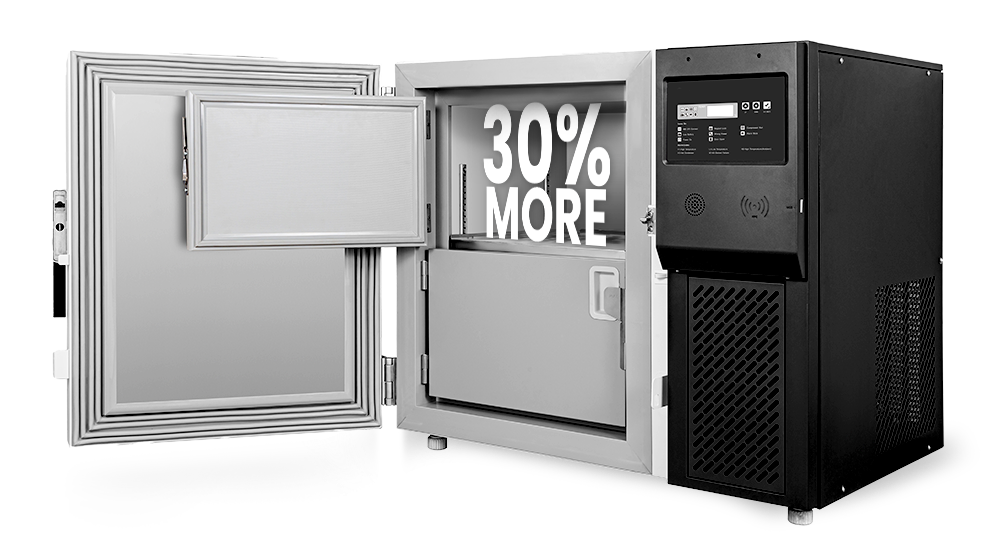

VIP Plus Insulation
Provides up to 30% more storage capacity than a conventionally insulated freezer, without increasing the footprint. A glass fibre core provides advanced thermal properties.
..
Other cold storage units
- Smaller storage capacity
Invertor Compressor
Inverter compressors offer superior energy efficiency (30–50% savings), lower noise levels, and enhanced durability compared to conventional fixed-speed motors.
VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
..
Other cold storage units
- Less energy efficient
- Louder
Fast Cool Down Speeds
Cool down and temperature recovery is up to 50% faster than other brands.
..
Other cold storage units
- Slower temperature recovery
D-Shape Evaporator
A patented D-shape evaporating tube allows more contact space increasing the heat exchange by up to 15% for faster pull down and recovery.
VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
..
Other cold storage units
- Slower recovery

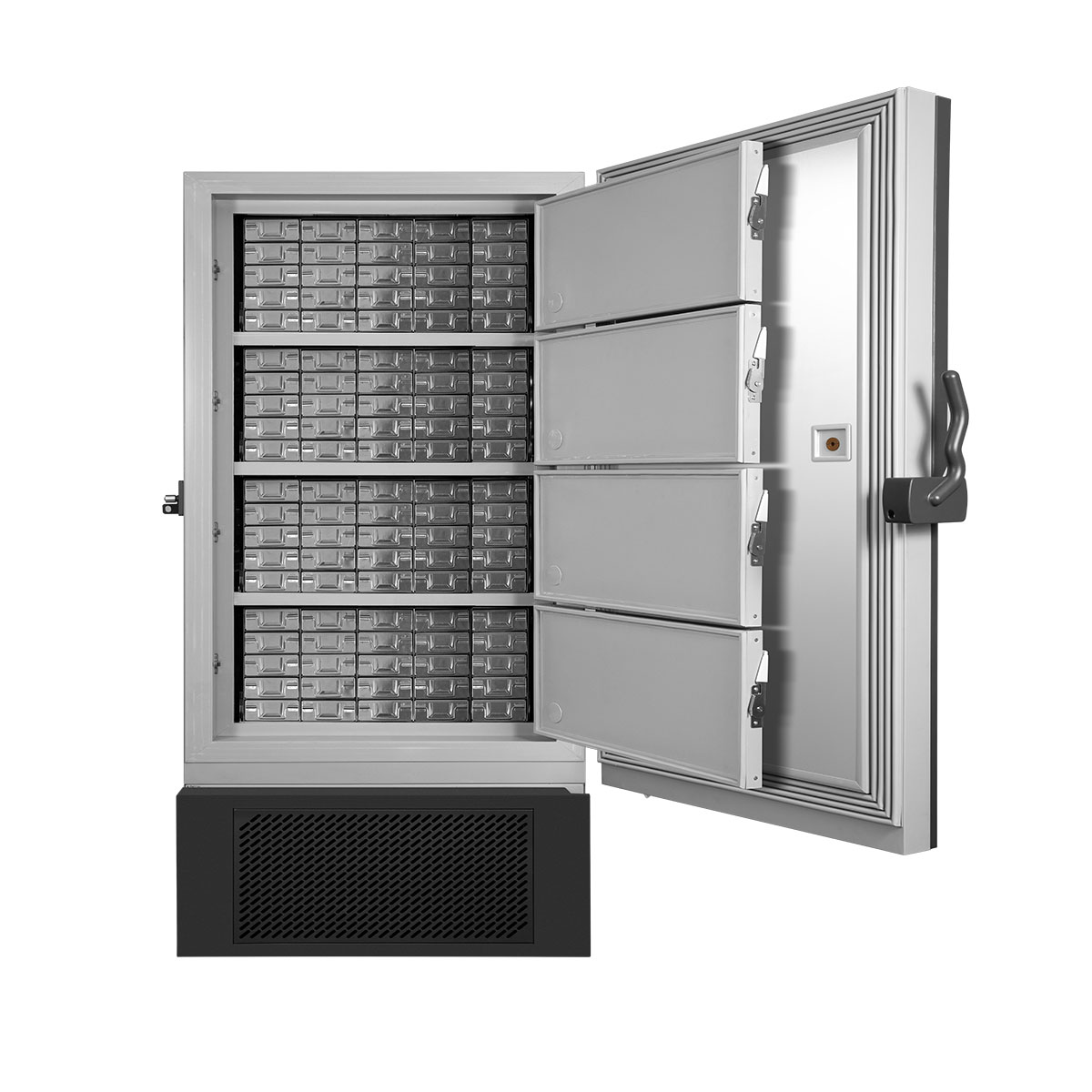

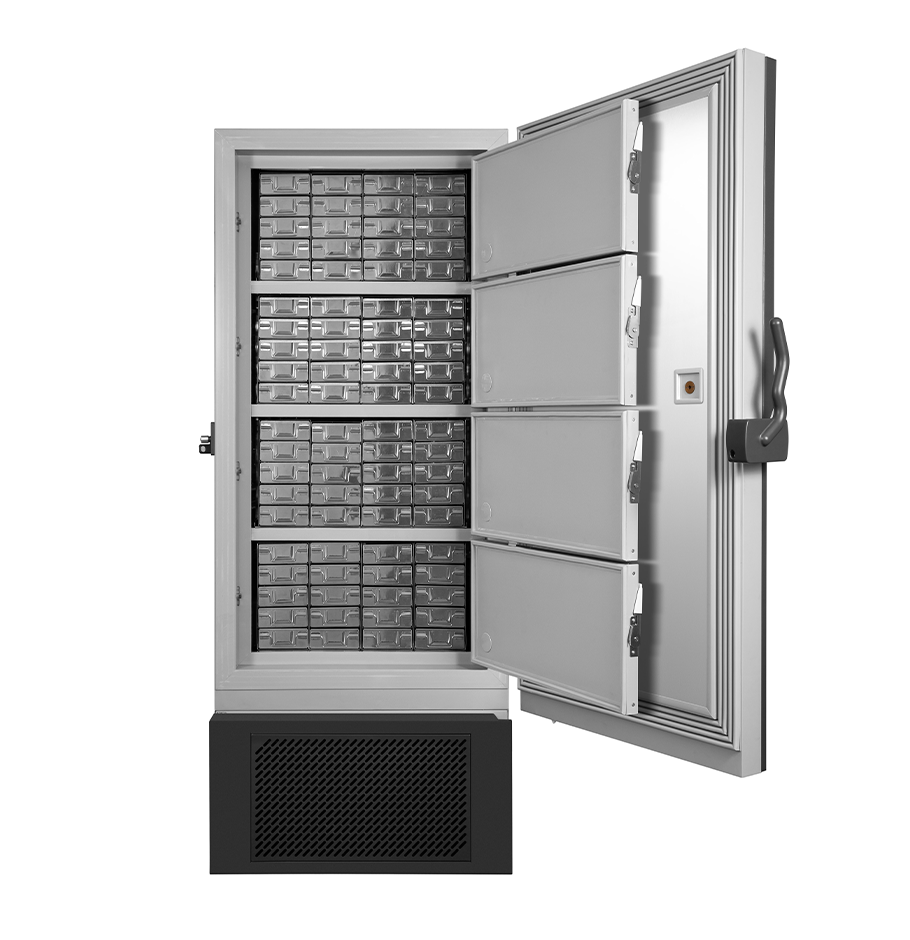

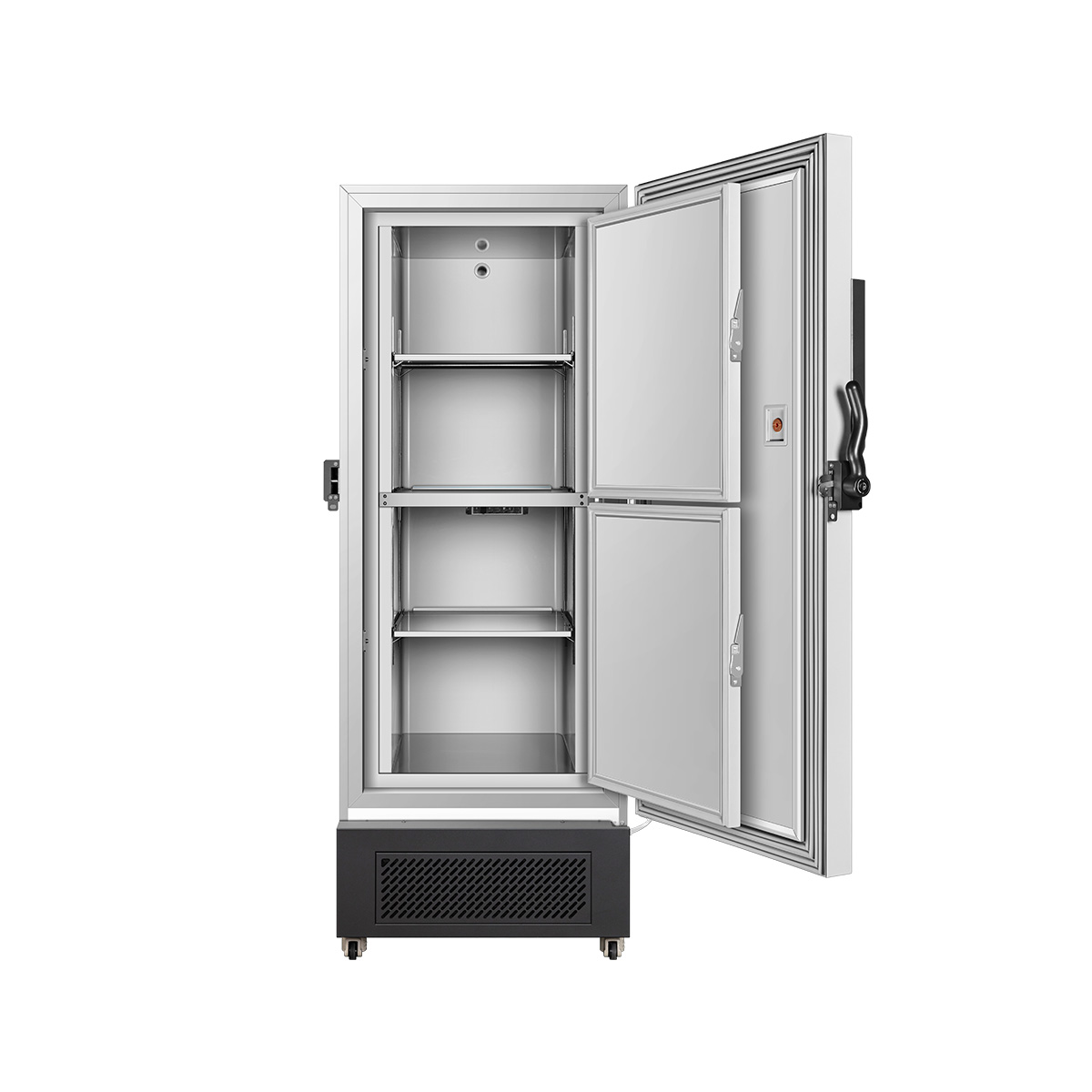

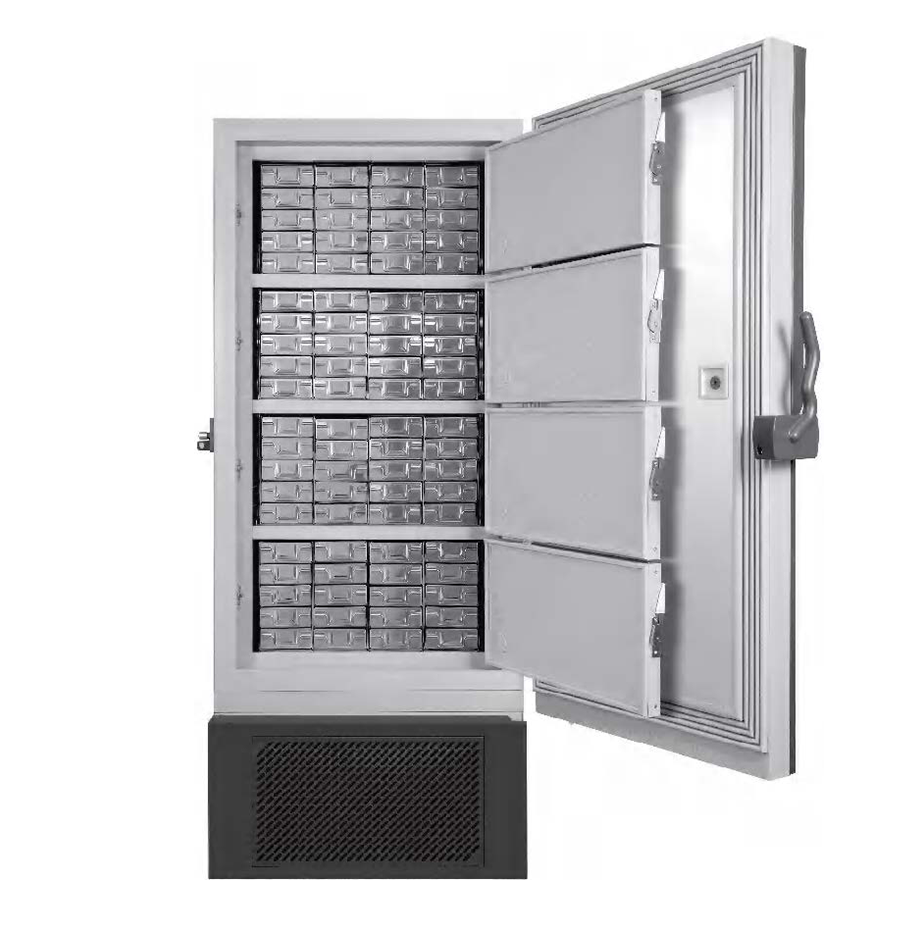

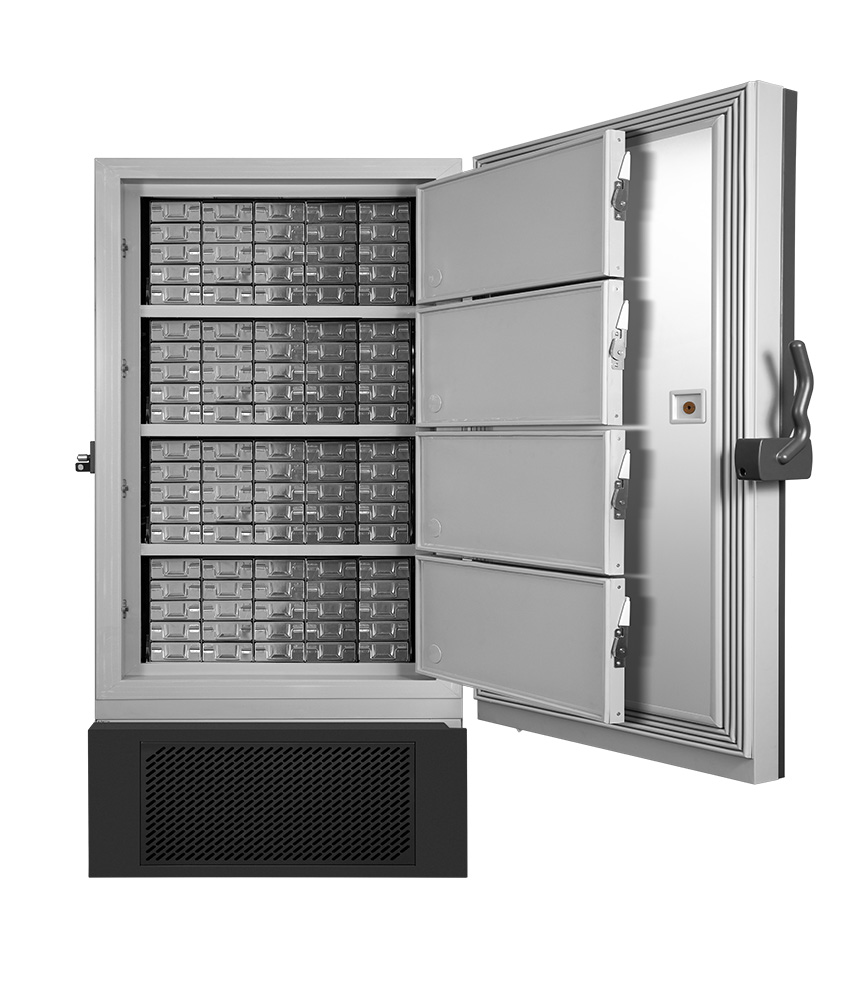

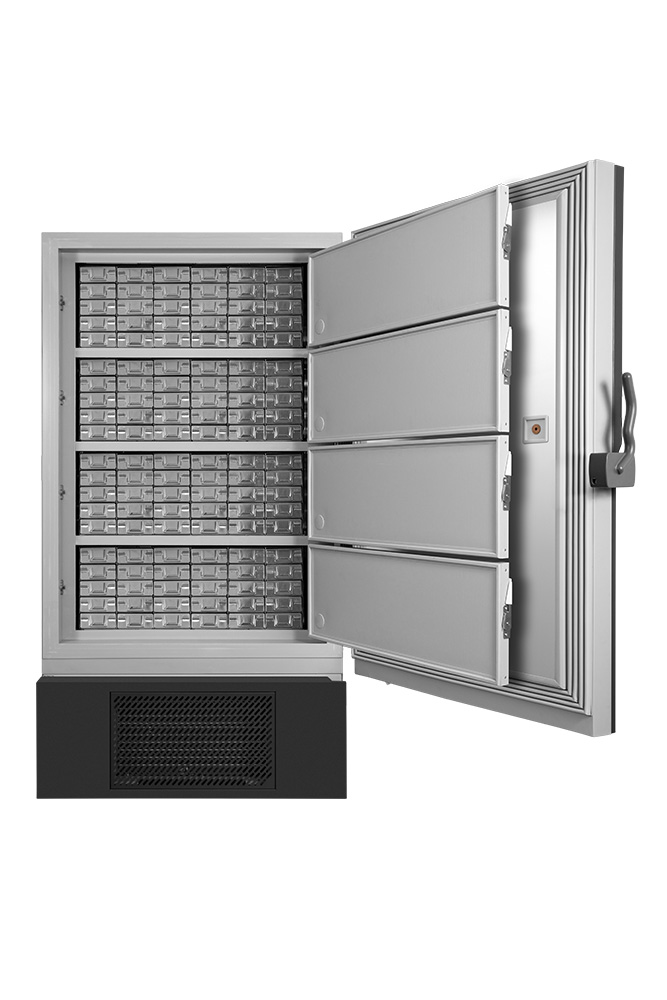

Double Door Design
Four independent / detachable inner door allows better samples management. And each inner door has gasket which will reduce heat exchange rate and retaining the inner temperature better.
VS-86L458S, VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
..
Other cold storage units
- Lacks gaskets per inner door
Temperature Logging
Enables users to download historical temperature data for compliance/auditing purposes.
VS-25L106/308/518, VS-40L106/308/518, VS-86L108/358
Other cold storage units
- Requires external temperature logger
Increased Product Lifespan
Dissipates heat 20% more effectively to improve life expectancy of core parts.
Other cold storage units
- Retain more heat leading to early part burn-out
Heated Pressure Equalization Port
When doors are opened and closed on Ultra Low Freezers a vacuum is created as the warmer air introduced is cooled down. Equalisation ports allow the unit to draw in a small amount of air to equalise the internal space allowing the door to be opened faster than units without this function.
VS-86L358, VS-86L458S, VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
Other cold storage units
- Main door slow to open
Multi-layer Sealing Structure
Multi-layers gaskets provide a tight seal between the inner doors and outer door, reducing heat exchange rate and retaining the inner temperature better when there is power failure.
Other cold storage units
- Use more energy to retain inner temperature due to poorer seal
Slim Cabinet Design
Slim cabinet design for space utilisation. Unit can pass through a 750mm wide door.
VS-86L108, VS-86L358, VS-86L458S
Other cold storage units
- Bulky cabinet designs take up valuable space
Twin Refrigeration Systems
If one system fails, the other can maintain the freezer’s temperature uniformly in the -70°C range.
VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
Other cold storage units
- No backup in place for a system failure to maintain refrigerator temperature
VIP Plus Insulation
Provides up to 30% more storage capacity than a conventionally insulated freezer, without increasing the footprint. A glass fibre core provides advanced thermal properties.
Other cold storage units
- Smaller storage capacity
Invertor Compressor
Inverter compressors offer superior energy efficiency (30–50% savings), lower noise levels, and enhanced durability compared to conventional fixed-speed motors.
VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
Other cold storage units
- Less energy efficient
- Louder
Fast Cool Down Speeds
Cool down and temperature recovery is up to 50% faster than other brands.
Other cold storage units
- Slower temperature recovery
D-Shape Evaporator
A patented D-shape evaporating tube allows more contact space increasing the heat exchange by up to 15% for faster pull down and recovery.
VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
Other cold storage units
- Slower recovery
Double Door Design
Four independent / detachable inner door allows better samples management. And each inner door has gasket which will reduce heat exchange rate and retaining the inner temperature better.
VS-86L458S, VS-86L568S, VS-86L580BS, VS-86L708S, VS-86L720BS, VS-86L818S
Other cold storage units
- Lacks gaskets per inner door
Specifications
TEMPERATURE RANGE
-86 TO -40°C TEMPERATURE RANGE
LITRES
VS-86L50: 50 LITRE GROSS CAPACITY
VS-86L108: 108 LITRE GROSS CAPACITY
VS-86L358: 358 LITRE GROSS CAPACITY
VS-86L458S: 458 LITRE GROSS CAPACITY
VS-86L568S: 568 LITRE GROSS CAPACITY
VS-86L708S: 718 LITRE GROSS CAPACITY
VS-86L818S: 838 LITRE GROSS CAPACITY
VS-86W100: 100 LITRE CAPACITY
VS-86W485: 485 LITRE CAPACITY
VS-86L580BS: 580 LITRE GROSS CAPACITY
VS-86L720BS: 720 LITRE GROSS CAPACITY
VS-86L860BS: 860 LITRE GROSS CAPACITY
DIMENSIONS
VS-86L50: EXTERNAL 951W X 700D X 757H (mm)
VS-86L50: INTERNAL 305W X 425D X 430H (mm)

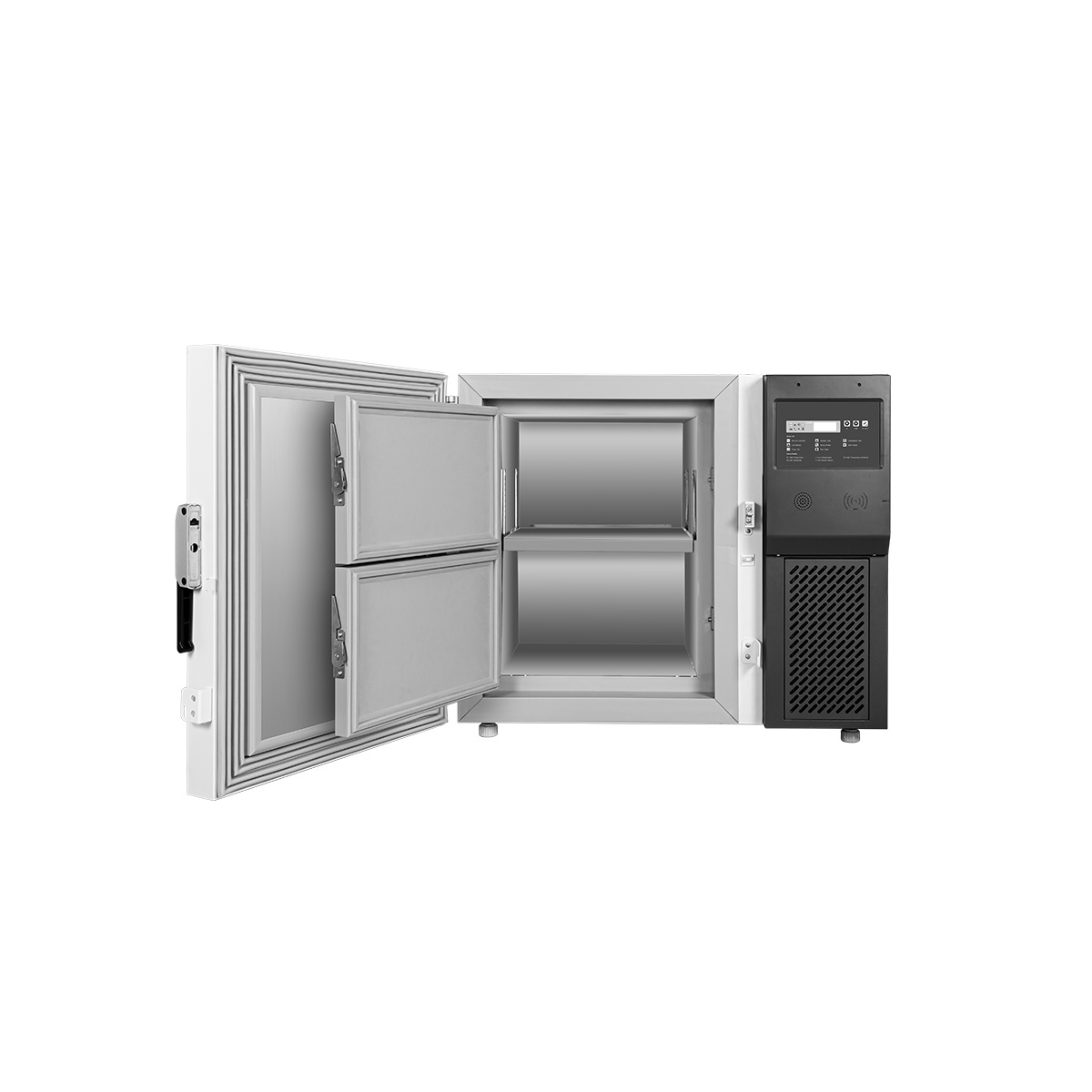

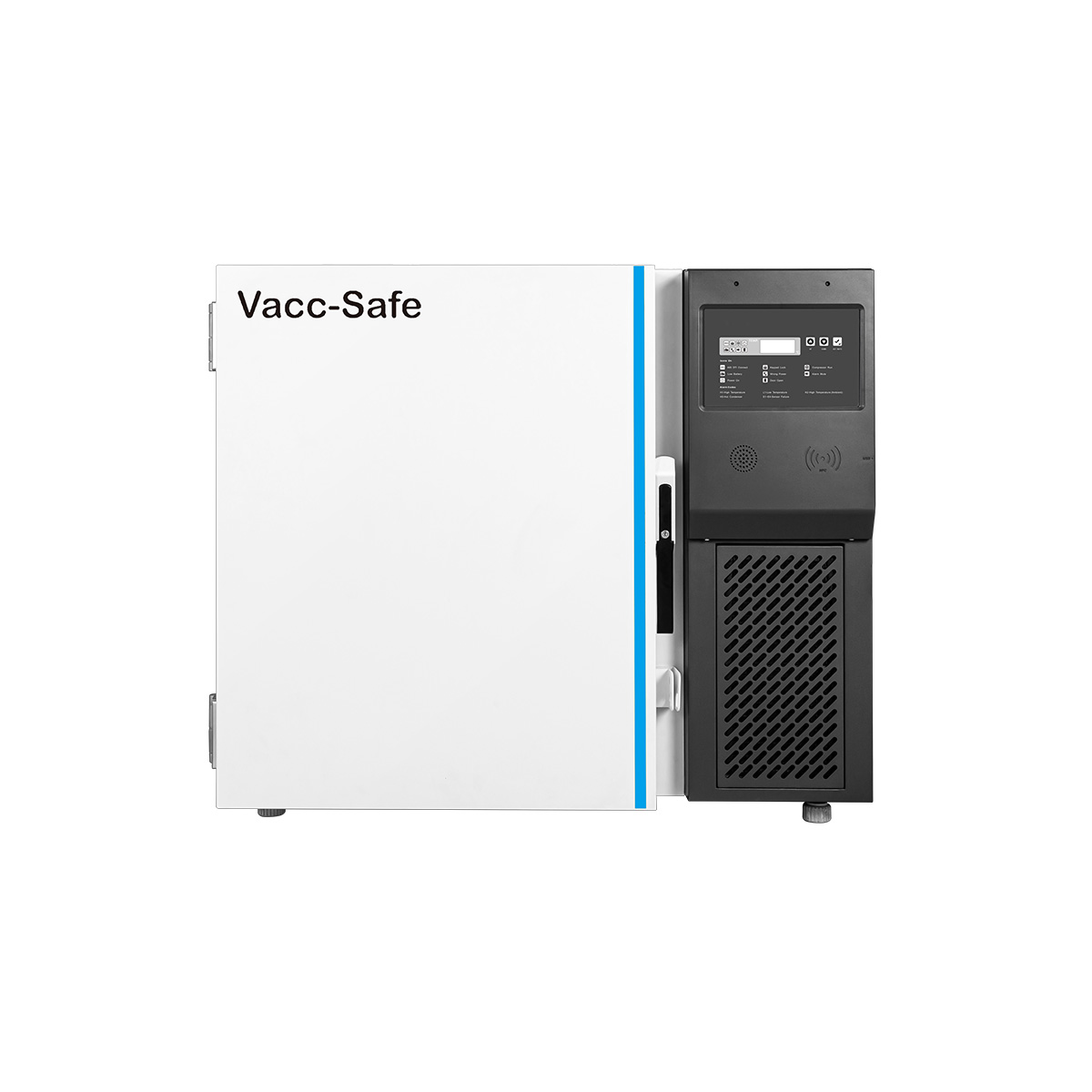

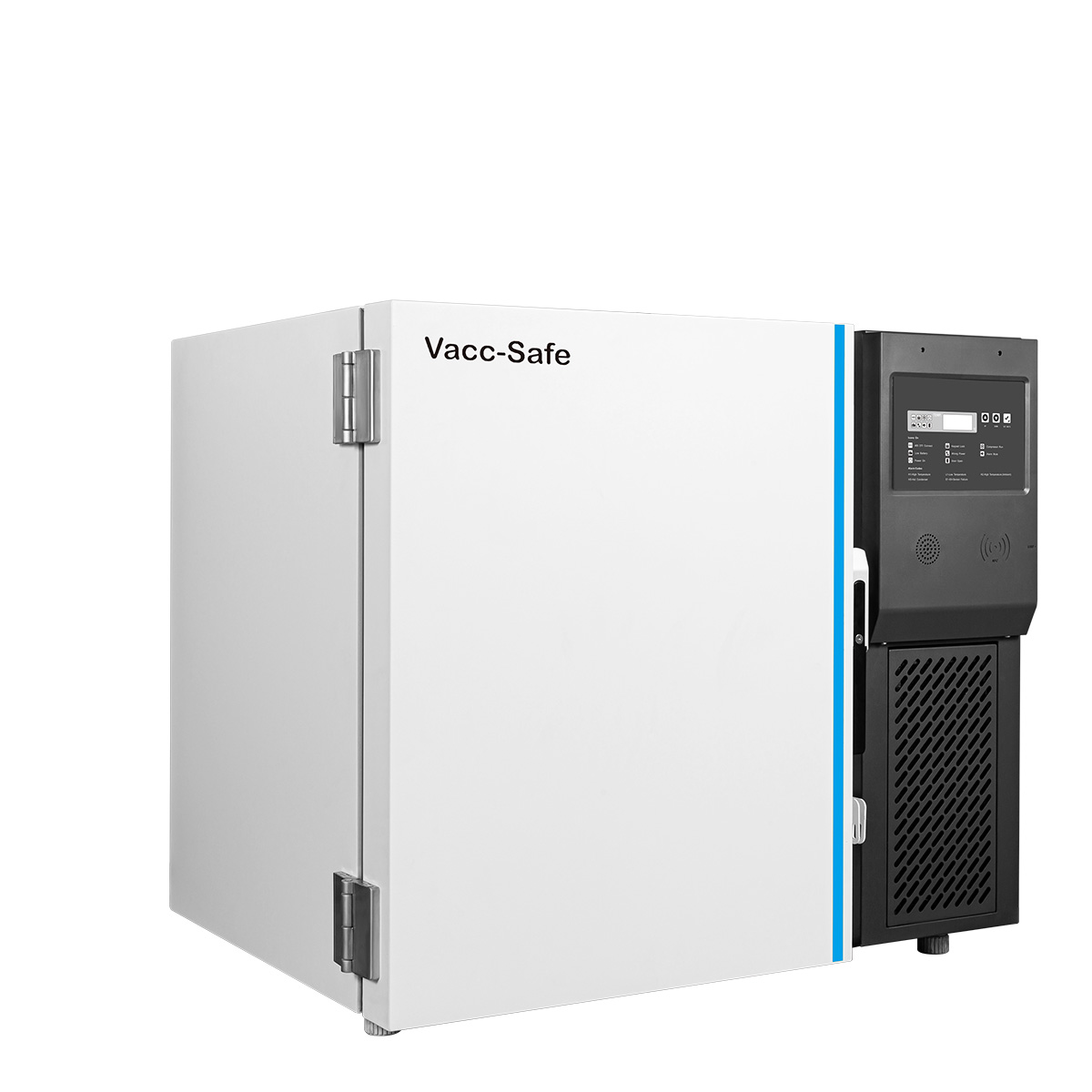

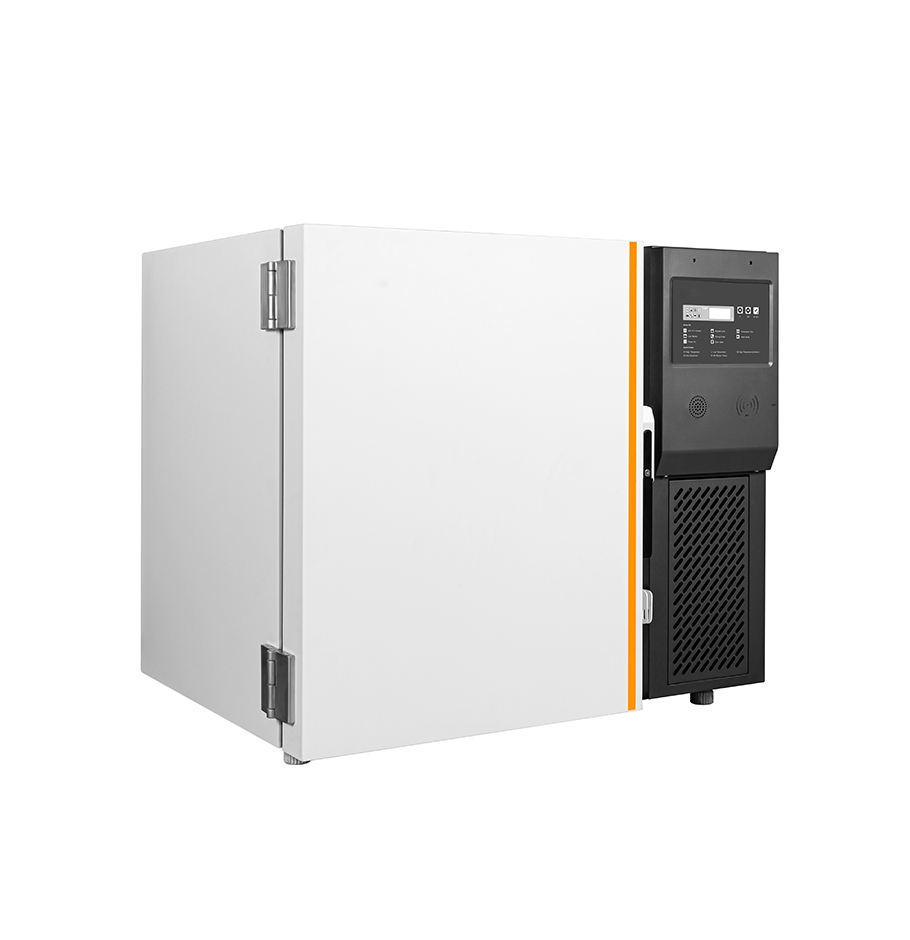

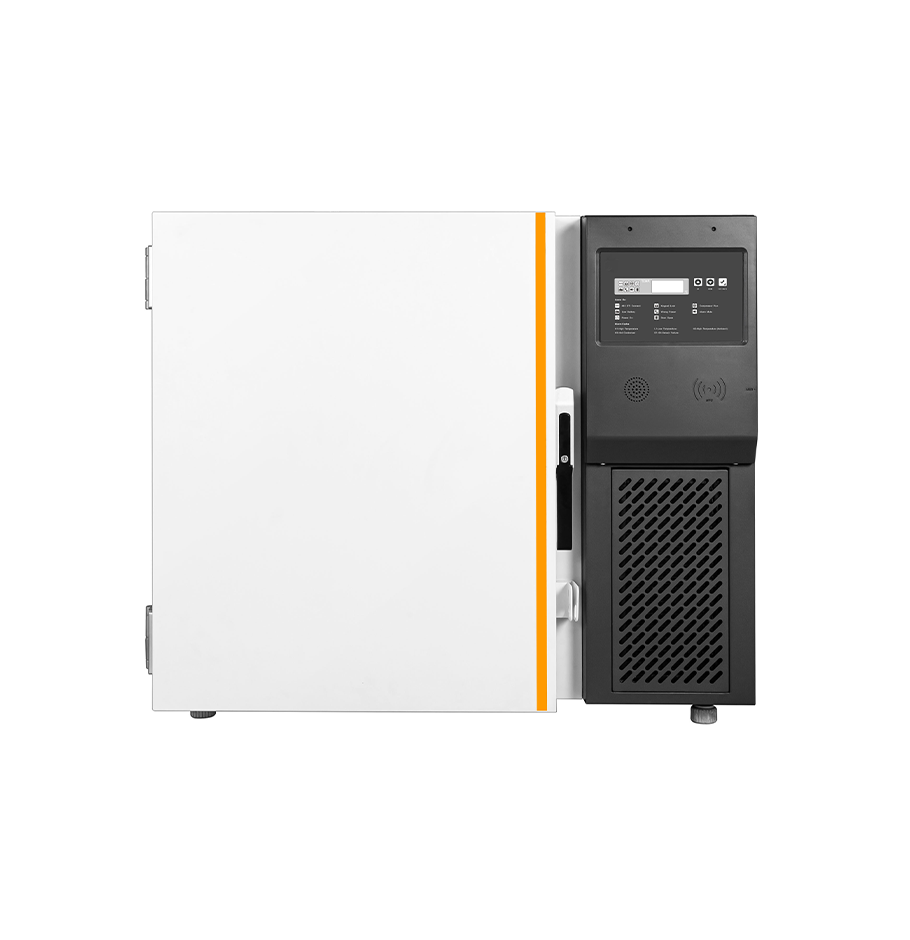

VS-86L108: EXTERNAL 955W X 675D X 815H (mm)

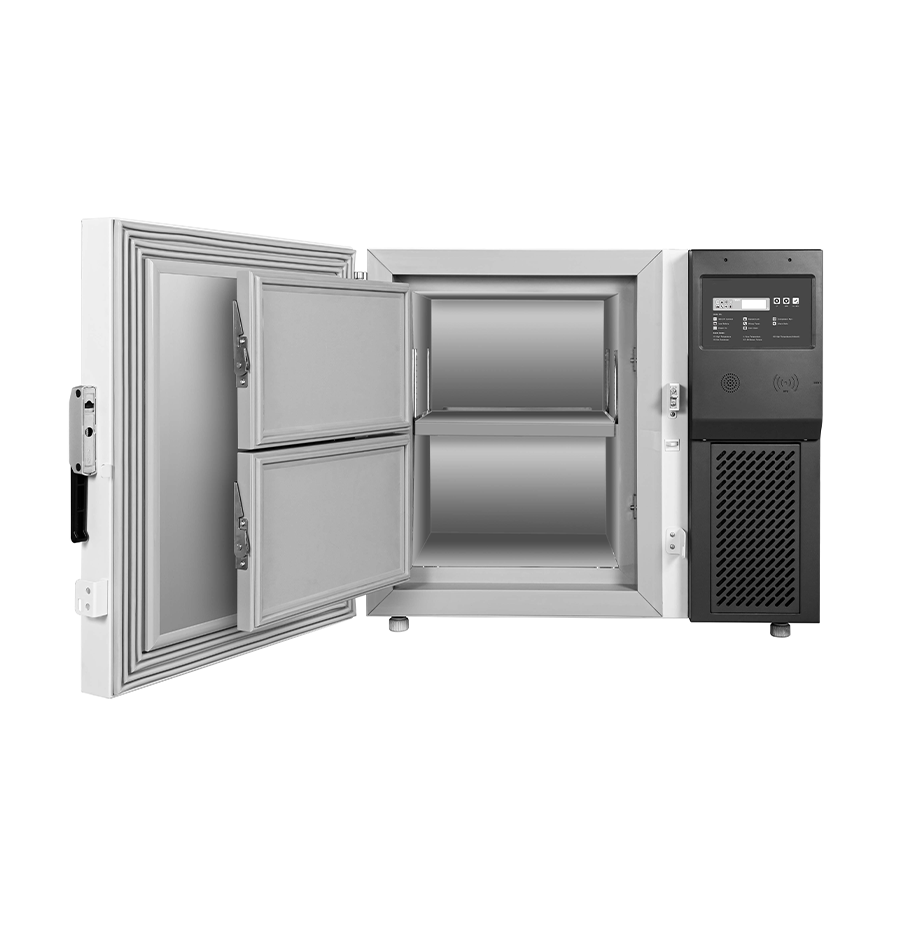

VS-86L108: INTERNAL 440W X 435D X 590H (mm)

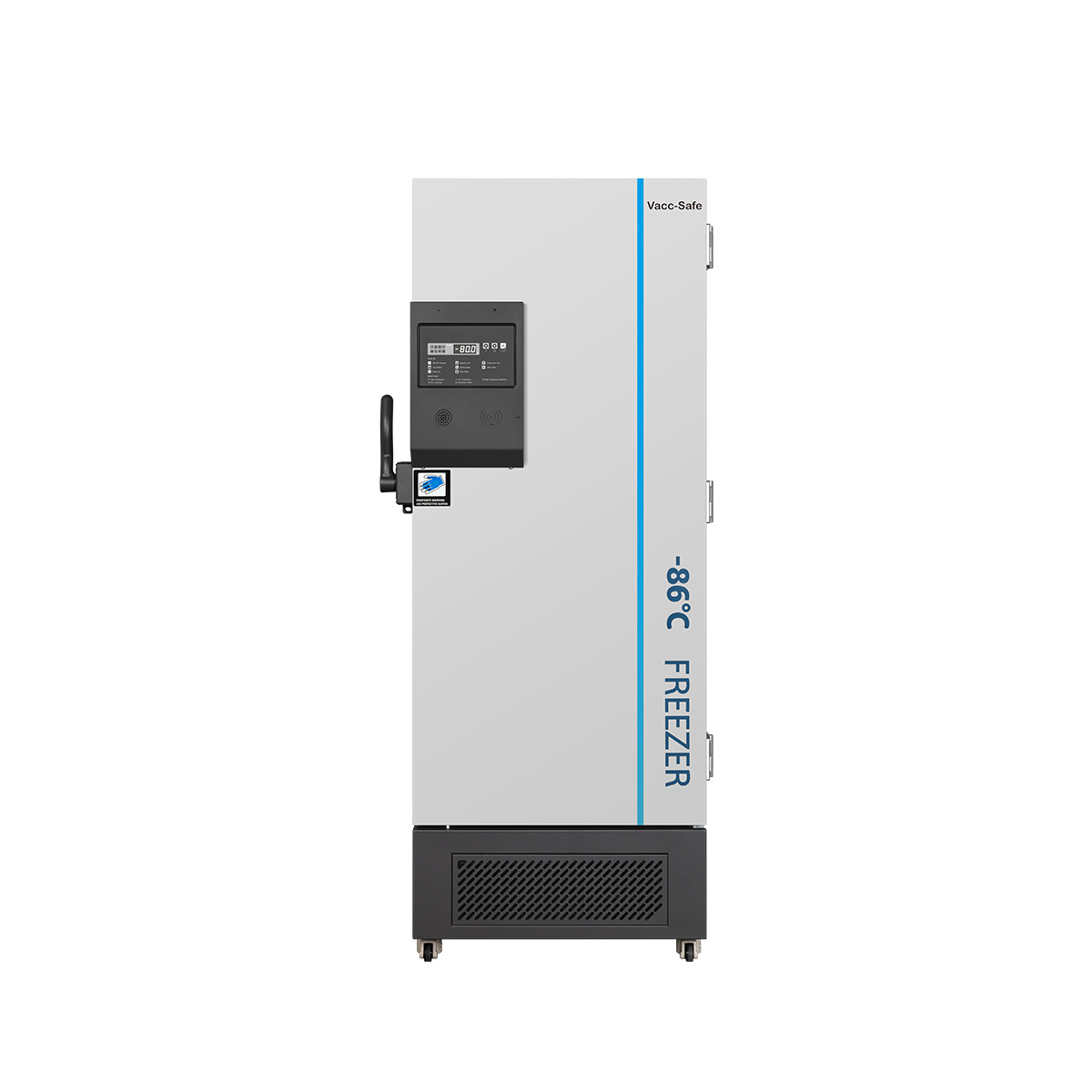

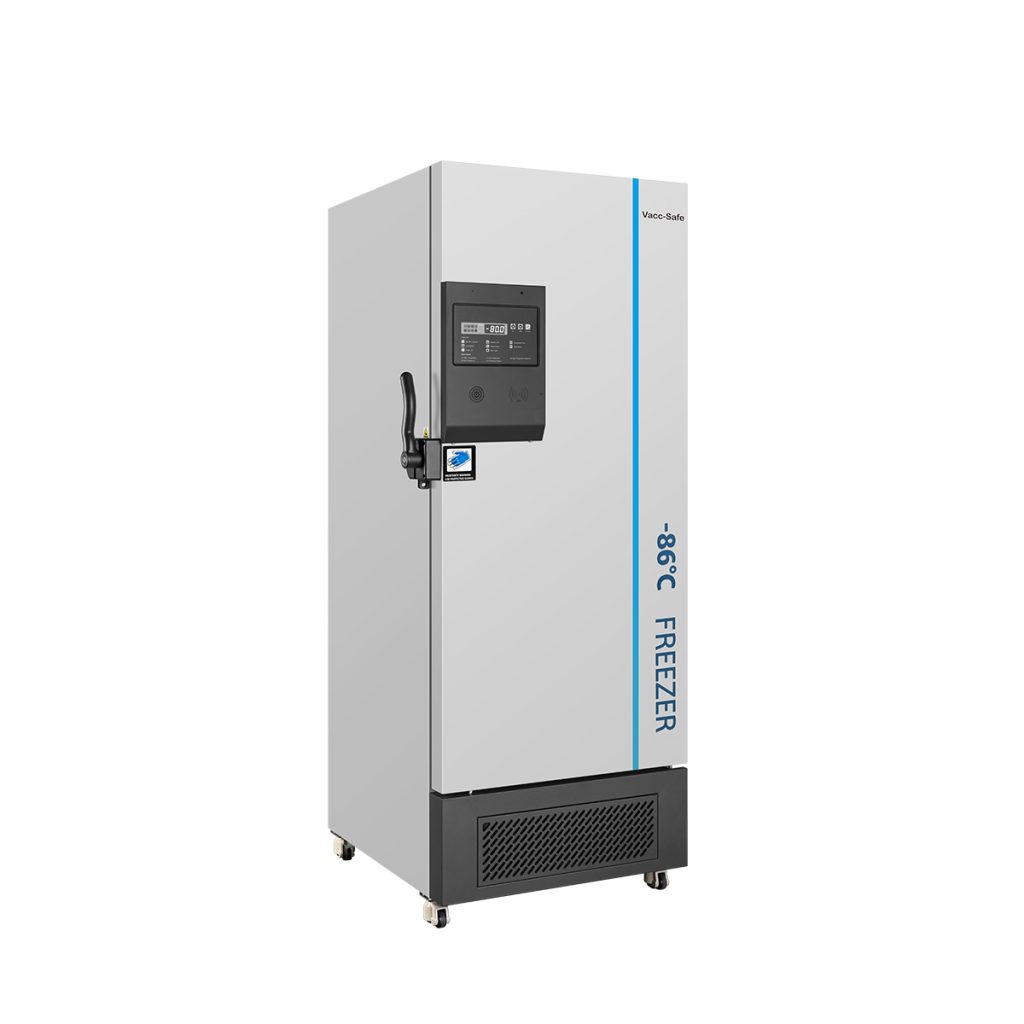

VS-86L358: EXTERNAL 795W X 855D X 1855H (mm)
VS-86L358: INTERNAL 450W X 583D X 1326H (mm)

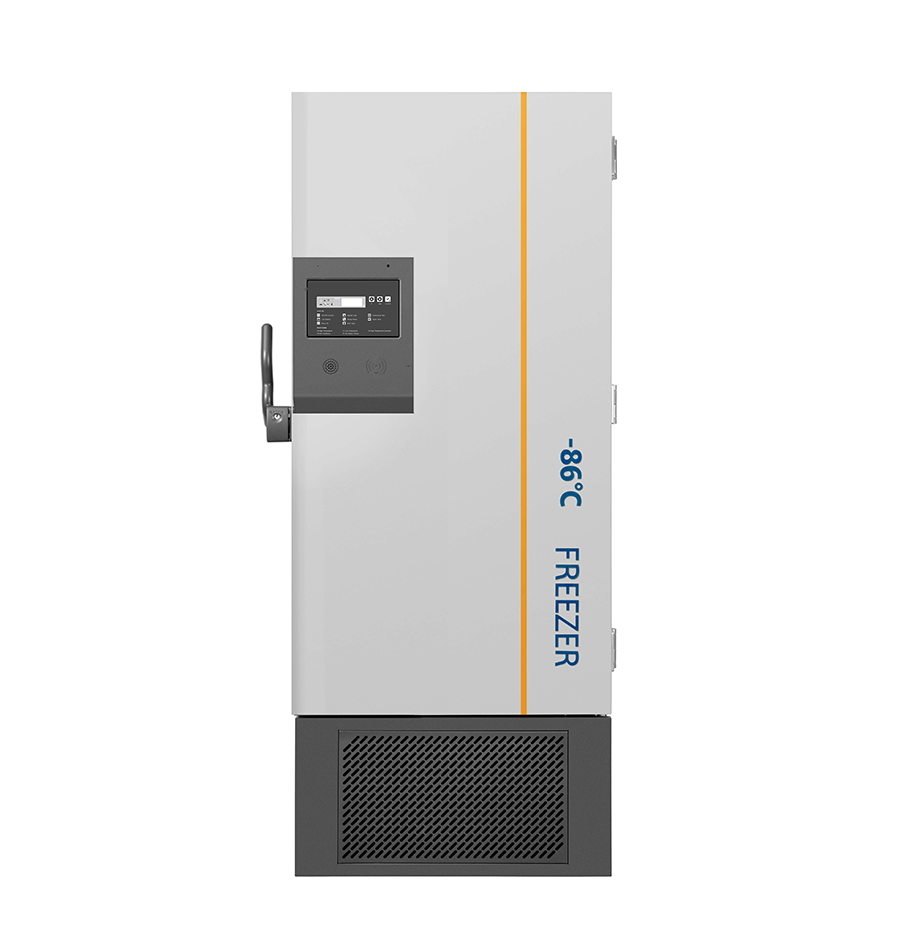

VS-86L458S: EXTERNAL 885W X 855D X 1990H (mm)
VS-86L458S: INTERNAL 595W X 580D X 1310H (mm)

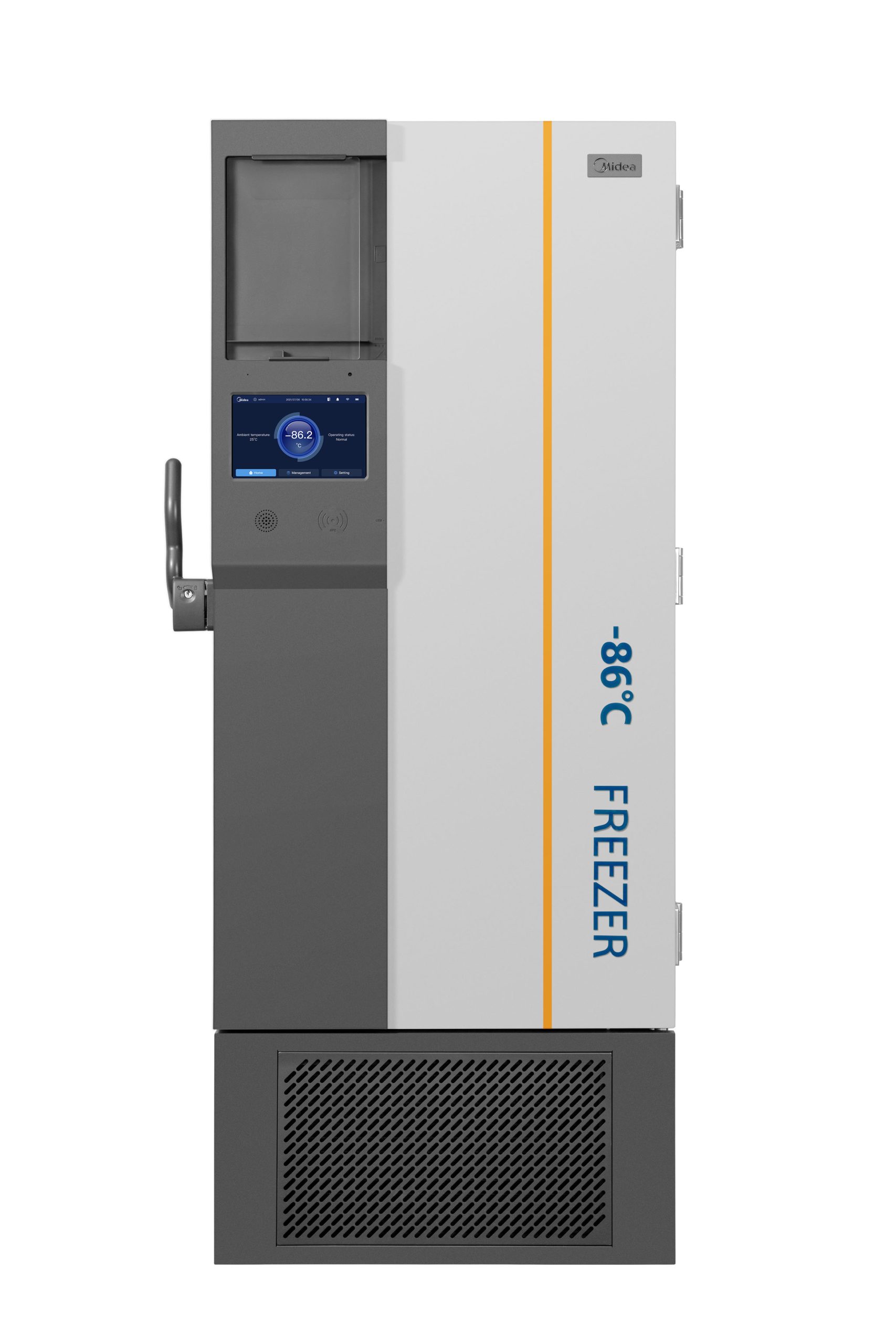

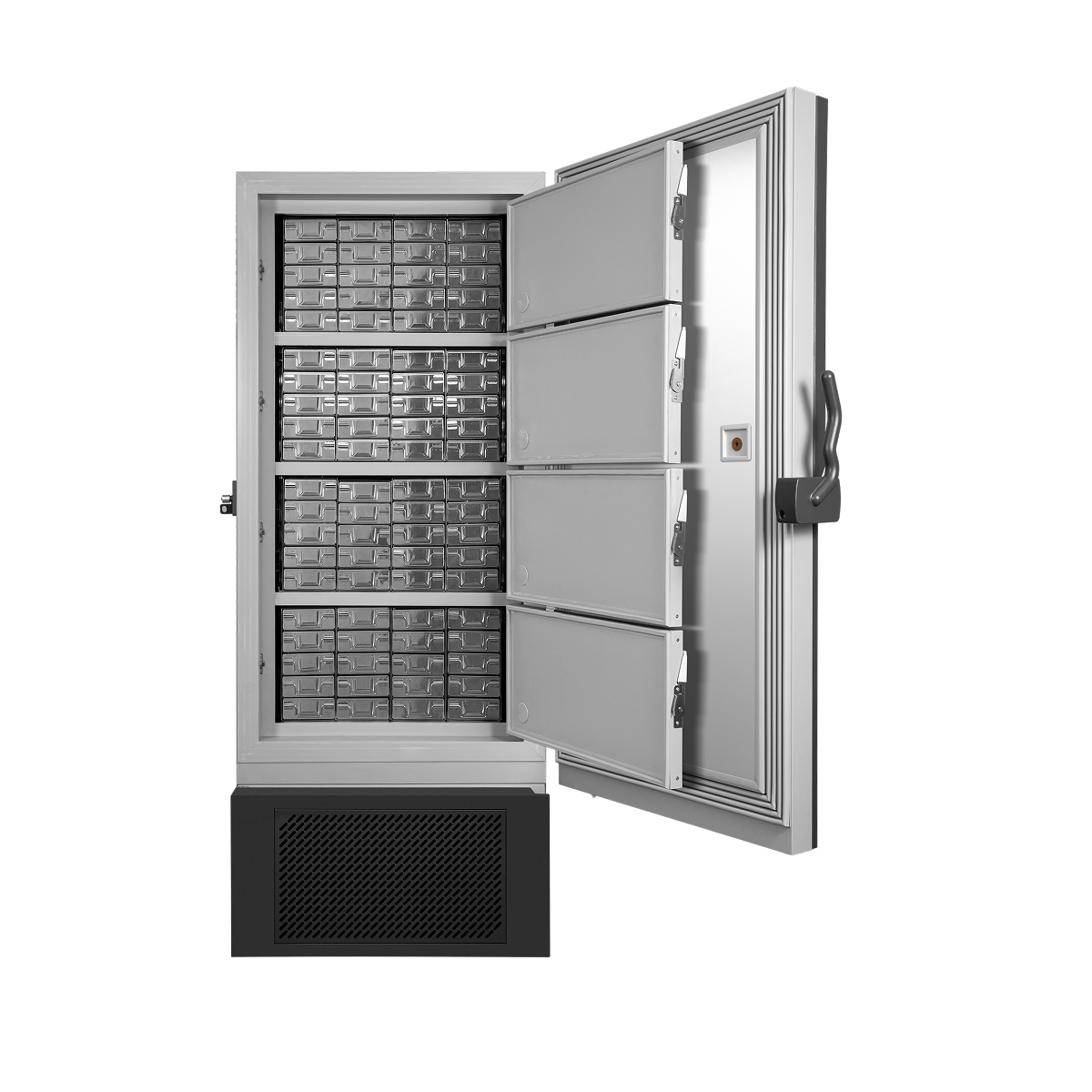

VS-86L568S: EXTERNAL 885W X 995D X 1990H (mm)
VS-86L568S: INTERNAL 595W X 720D X 1310H (mm)

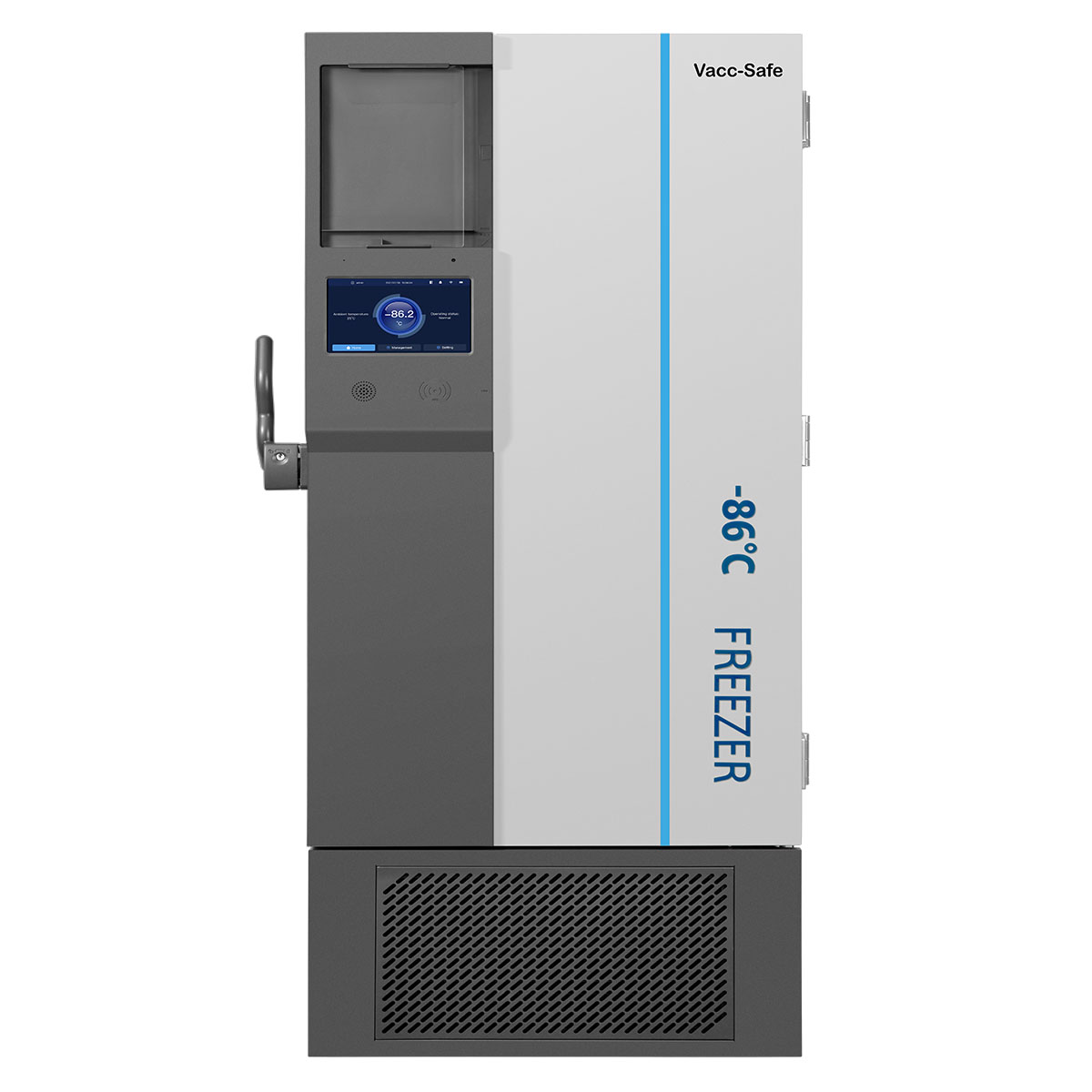

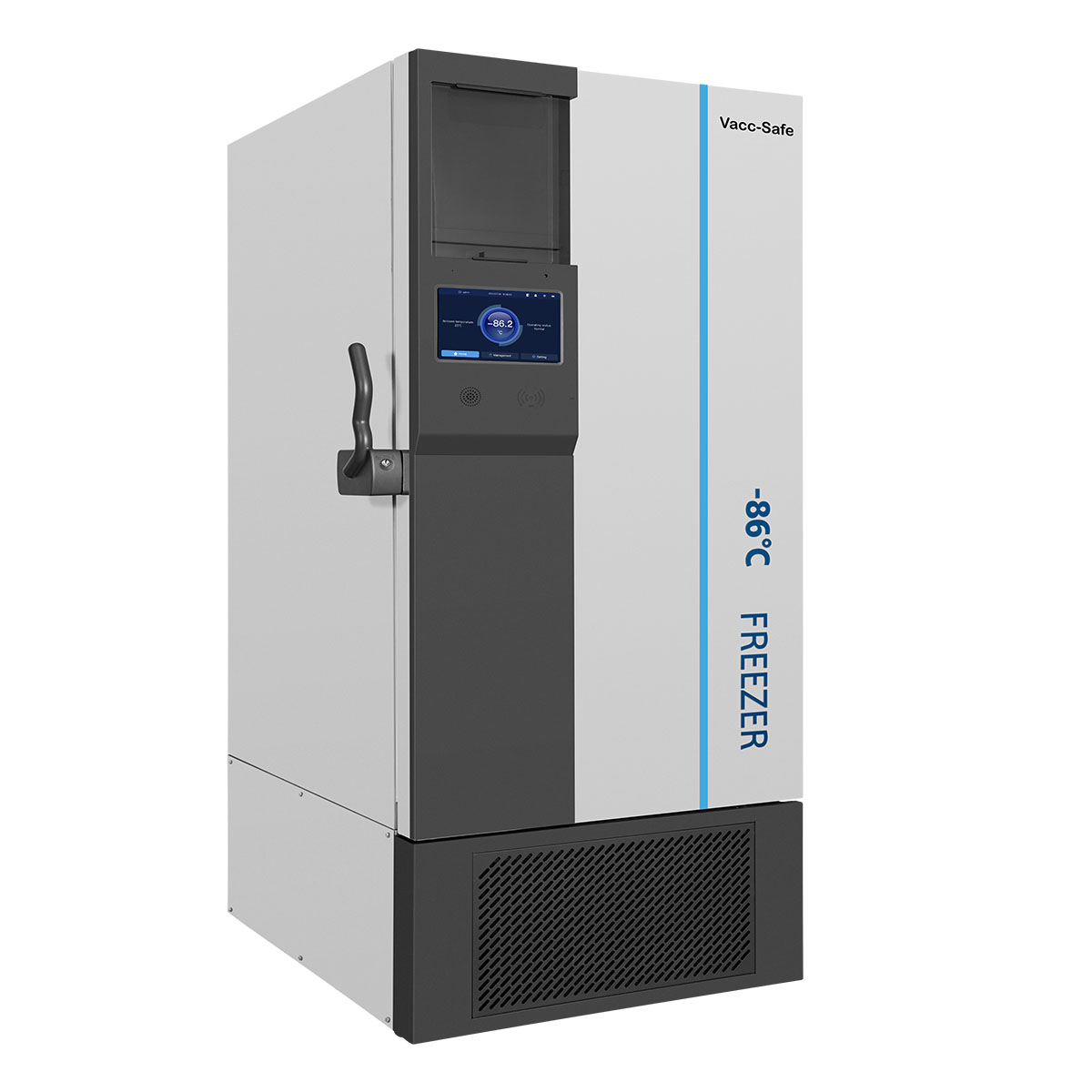

VS-86L708S: EXTERNAL 1030W X 995D X 1990H (mm)
VS-86L708S: INTERNAL 740W X 720D X 1310H (mm)
VS-86L818S: EXTERNAL 1175W X 995D X 1990H (mm)
VS-86L818S: INTERNAL 885W X 720D X 1310H (mm)
VS-86W100: EXTERNAL 686W X 694D X 942H (mm)
VS-86W100: INTERNAL 480W X 380D X 665H (mm)

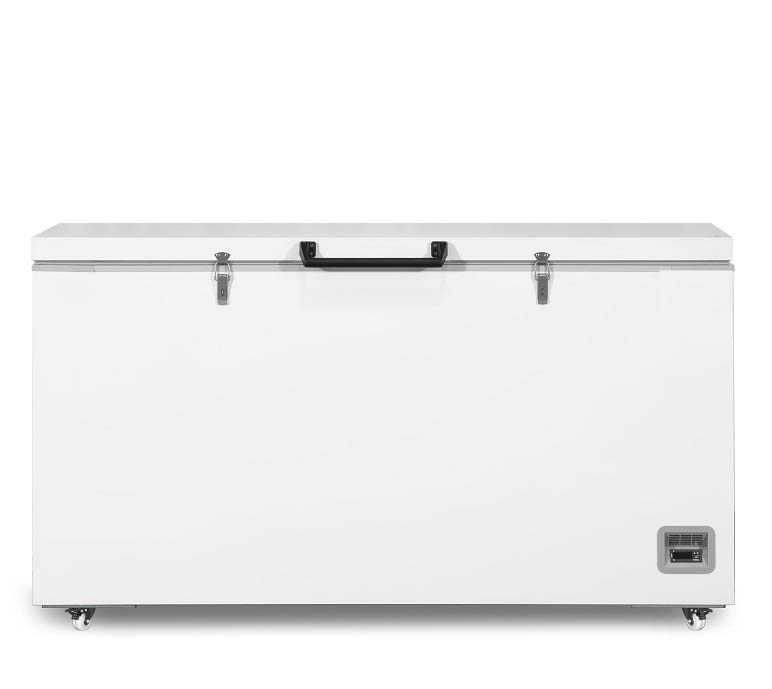

VS-86W485: EXTERNAL 1670W X 810D X 930H (mm)
VS-86W485: INTERNAL 1455W X 525D X 665H (mm)
VS-86L580BS: EXTERNAL 885W X 995D X 1980H (mm)
VS-86L580BS: INTERNAL 595W X 720D X 1310H (mm)
VS-86L720BS: EXTERNAL 1030W X 995D X 1980H (mm)
VS-86L720BS: INTERNAL 740W X 720D X 1310H (mm)
VS-86L860BS: EXTERNAL 1175W X 995D X 1990H (mm)
VS-86L860BS: INTERNAL 885W X 720D X 1310H (mm)
SCREEN
LED DISPLAY
VS-86L458S: 10″ Touch Screen for ease of use
VS-86L568S: 10″ Touch Screen for ease of use
VS-86L708S: 10″ Touch Screen for ease of use
VS-86L818S: 10″ Touch Screen for ease of use
VS-86L580BS: 10″ Touch Screen for ease of use
VS-86L720BS: 10″ Touch Screen for ease of use
VS-86L860BS: 10″ Touch Screen for ease of use
MACHINE TYPE
FREEZER
WEIGHT
VS-86L50: 104Kg
VS-86L108: 113Kg
VS-86L358: 206Kg
VS-86L458S: 237Kg
VS-86L568S: 286Kg
VS-86L708S: 305Kg
VS-86L818S: 332Kg
VS-86W100: N/A
VS-86W485: N/A
VS-86L580BS: 331Kg
VS-86L720BS: 370Kg
VS-86L860BS: 403Kg
NO. OF SHELVES
VS-86L50: 1
VS-86L108: 1
VS-86L358: 3
VS-86L458S: 3
VS-86L568S: 3
VS-86L708S: 3
VS-86L818S: 3
VS-86W100: 0
VS-86W485: 0
VS-86L580BS: 3
VS-86L720BS: 3
VS-86L860BS: 3
CLIMATE CLASS
“N”
PORTHOLE
YES
Additional features
Built-In Backup Battery
Built in battery to display temperature when power is off.
Lockable
Additional security for pharmaceuticals and samples.
Security
Audible and Visual Alarms. Safety Lock.
Single LED Display
High accuracy single LED displays.
USB Data
Built in USB Data Logger. Data can be traced and exported.
