Below Zero -25°C Freezers
Download SKU: VS-25L106 VS-25L308 VS-25L518 VS-25W100 VS-25W300 VS-25W450 VS-25W568
Vacc-Safe Below Zero -25°C Freezers
Select size:
Vacc-Safe Biomedical Freezers are designed for durability, consistency and accuracy. With Microcomputer Temperature Contollers these are suitable for any industry where temperature uniformity is required.
- Medical Freezers for -25 to -10°C
- Precise temperature control within +/- 1 degree variance
All Vacc-Safe® products are QCPP compliant, as approved by the Pharmacy Guild of Australia.
Key benefits
Microcomputer Temperature Control System
Microcomputer temperature control – temperature accuracy 0.1ºC Button-type control panel is easy to operate, the temperature and alarm settings can be adjusted on the panel.
Other cold storage units
- Unreliable temperature accuracy
Three-dimensional Seal
The unique three-dimensional seal, through the double-layer door seal and the multi-layer airbag sealing design, can effectively reduce the leakage of cold air and achieve best thermal insulation performance.
Other cold storage units
- Leak cold air leading to poor insulation performance
High Precision Temperature Control
Precise storing of vaccines, medicines and laboratory products, detecting within +/- 1 degree variance in temperature for real-time alert monitoring. LBA Foaming Technology provides more effective insulation to improve performance and reduce overall energy consumption.
Other cold storage units
- Unsatisfactory temperature uniformity
- High energy consumption
- Low performance insulation
Increased Product Lifespan
Dissipates heat 20% more effectively to improve life expectancy of core parts.
Other cold storage units
- Retain more heat leading to early part burn-out
Microcomputer Temperature Control System
Microcomputer temperature control – temperature accuracy 0.1ºC Button-type control panel is easy to operate, the temperature and alarm settings can be adjusted on the panel.
Other cold storage units
- Unreliable temperature accuracy
Three-dimensional Seal
The unique three-dimensional seal, through the double-layer door seal and the multi-layer airbag sealing design, can effectively reduce the leakage of cold air and achieve best thermal insulation performance.
Other cold storage units
- Leak cold air leading to poor insulation performance
High Precision Temperature Control
Precise storing of vaccines, medicines and laboratory products, detecting within +/- 1 degree variance in temperature for real-time alert monitoring. LBA Foaming Technology provides more effective insulation to improve performance and reduce overall energy consumption.
Other cold storage units
- Unsatisfactory temperature uniformity
- High energy consumption
- Low performance insulation
Increased Product Lifespan
Dissipates heat 20% more effectively to improve life expectancy of core parts.
Other cold storage units
- Retain more heat leading to early part burn-out
Specifications
TEMPERATURE RANGE
VS-25L106: -25 TO -10°C TEMPERATURE RANGE
VS-25L308: -25 TO -10°C TEMPERATURE RANGE
VS-25L518: -25 TO -10°C TEMPERATURE RANGE
VS-25W100: -25 TO -10°C TEMPERATURE RANGE
VS-25W300: -25 TO -10°C TEMPERATURE RANGE
VS-25W450: -25 TO -10°C TEMPERATURE RANGE
VS-25W568: -25 TO -10°C TEMPERATURE RANGE
LITRES
VS-25L106: 106 LITRE GROSS CAPACITY
VS-25L308: 314 LITRE GROSS CAPACITY
VS-25L518: 518 LITRE GROSS CAPACITY
VS-25W100: 100 LITRE CAPACITY
VS-25W300: 300 LITRE CAPACITY
VS-25W450: 450 LITRE CAPACITY
VS-25W568: 568 LITRE CAPACITY
DIMENSIONS

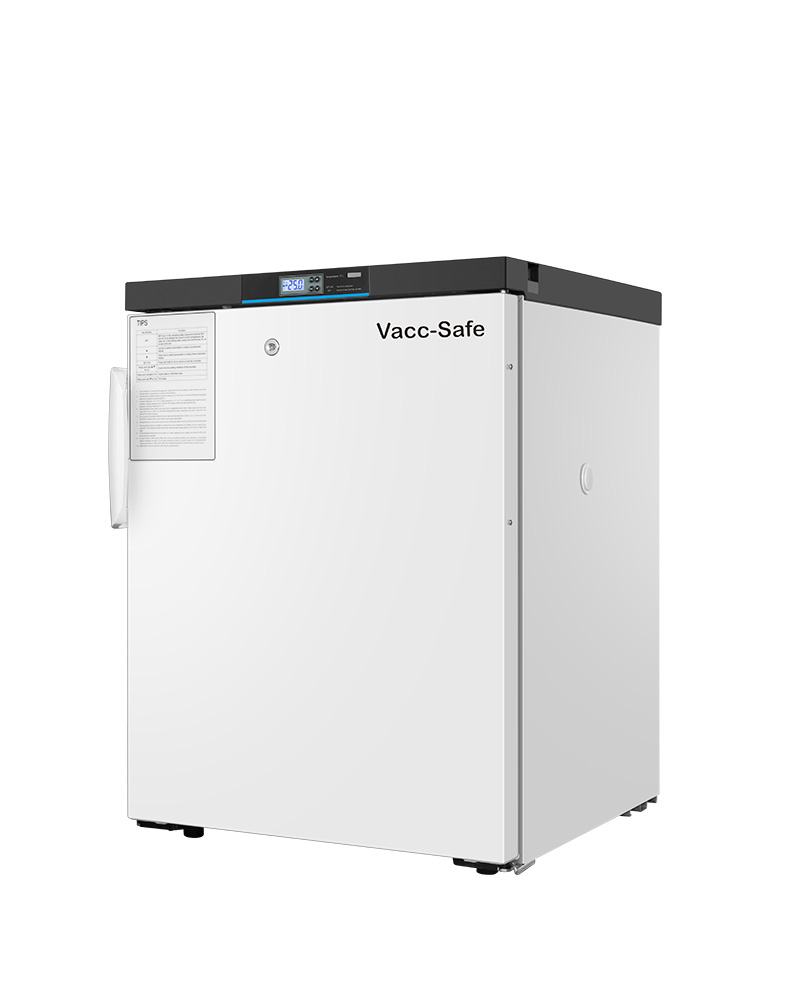

VS-25L106: EXTERNAL 595W X 615D X 812H (mm)
VS-25L106: INTERNAL 455W X 460D X 595H (mm)

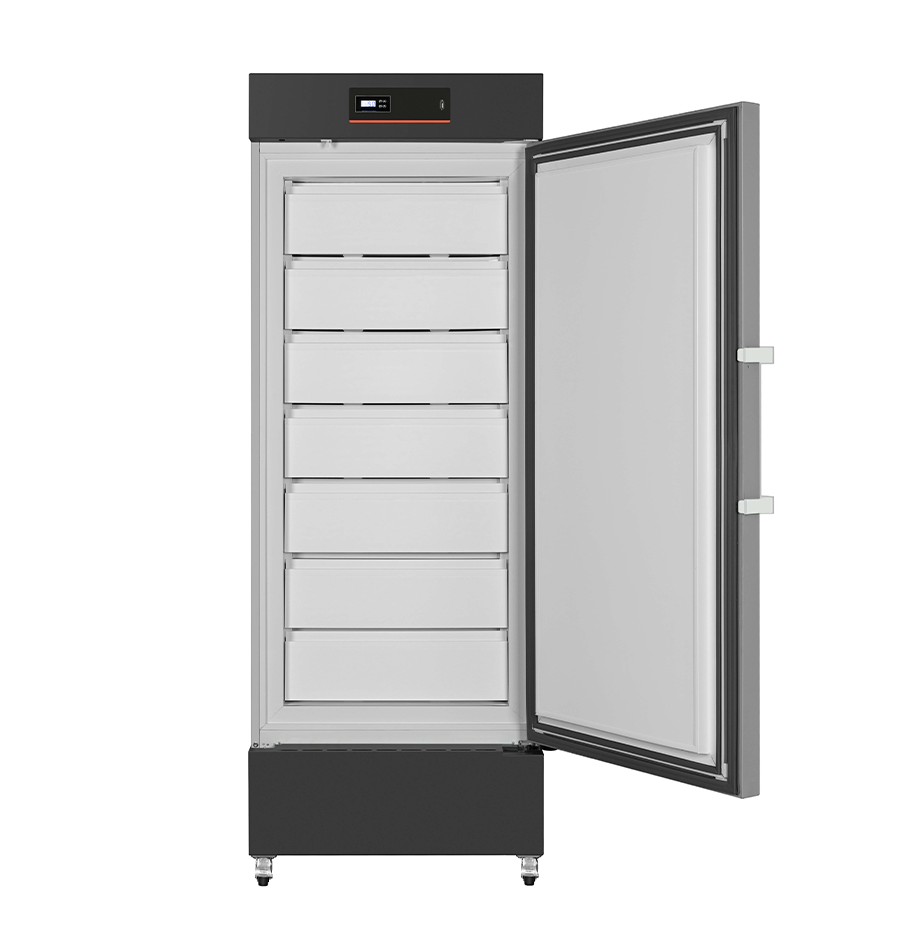

VS-25L308: EXTERNAL 700W X 690D X 1920H (mm)
VS-25L308: INTERNAL 540W X 450D X 1277H (mm)

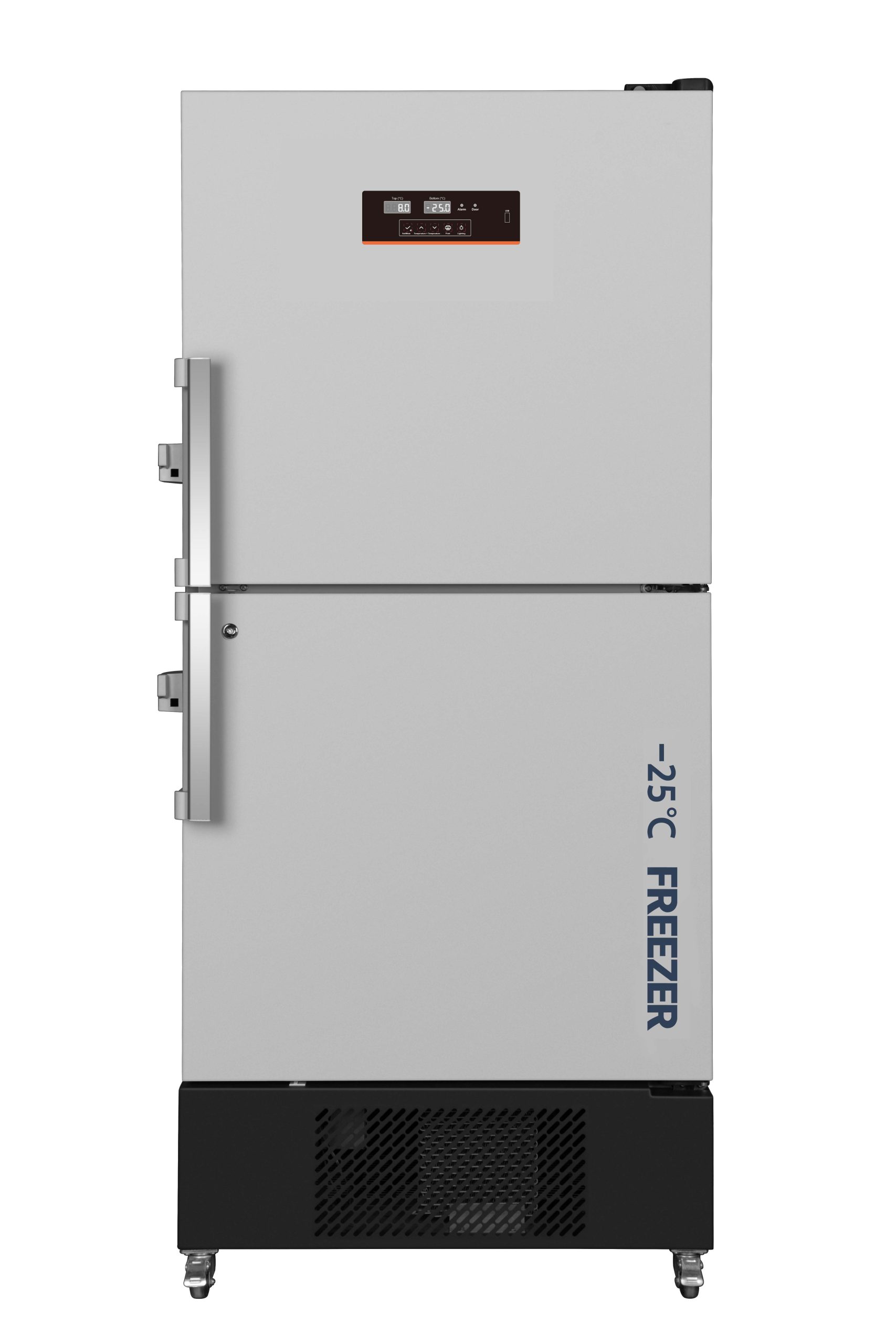

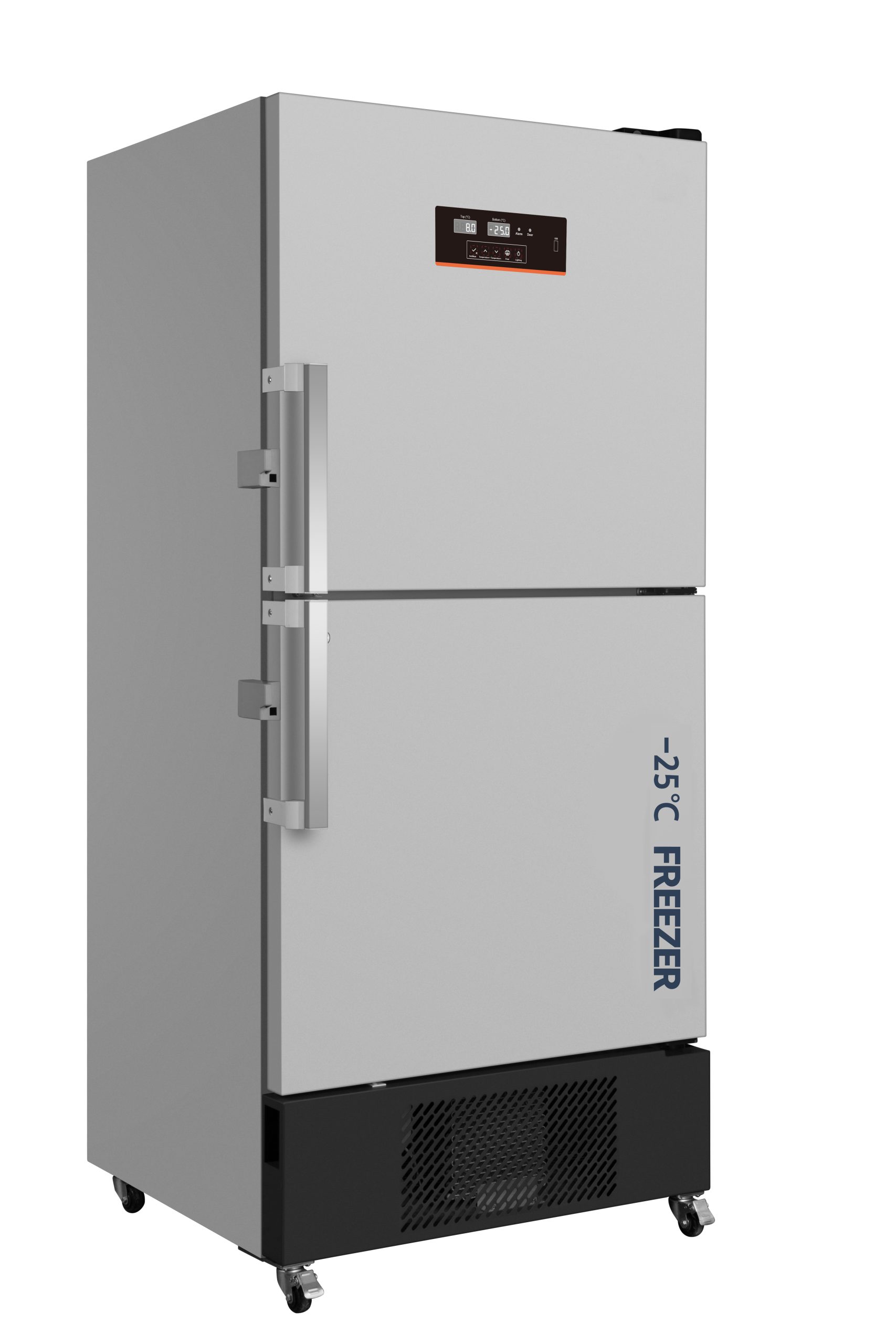

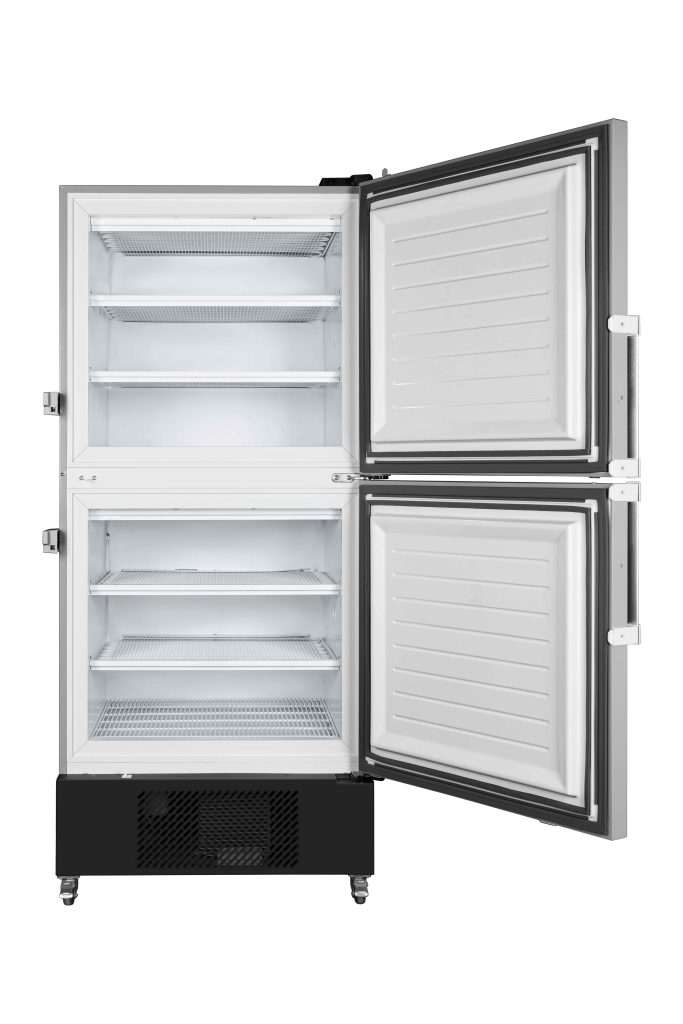

VS-25L518: EXTERNAL 866W X 811D X 1920H (mm)
VS-25L518: INTERNAL UPPER 680W X 620D X 650H (mm)
VS-25L518: INTERNAL LOWER 680W X 620D X 650H (mm)

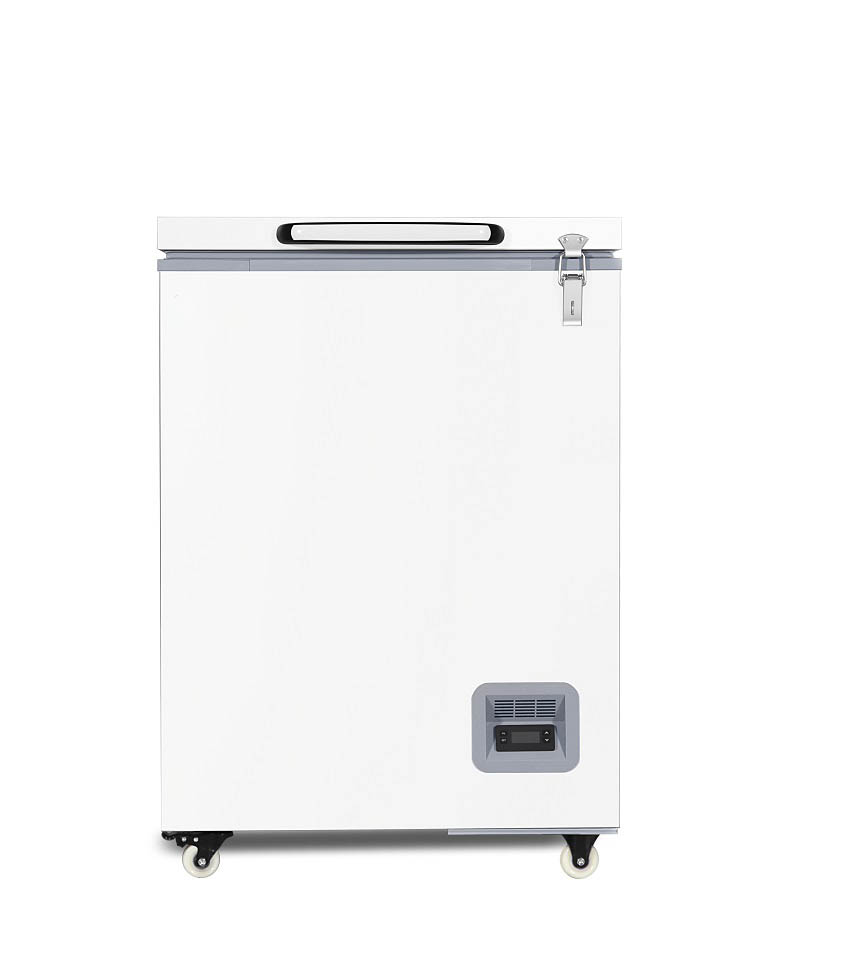

VS-25W100: EXTERNAL 615W X 570D X 880H (mm)
VS-25W100: INTERNAL 480W X 380D X 665H (mm)
VS-25W300: EXTERNAL 1140W X 742D X 883H (mm)
VS-25W300: INTERNAL 1000W X 520D X 665H (mm)

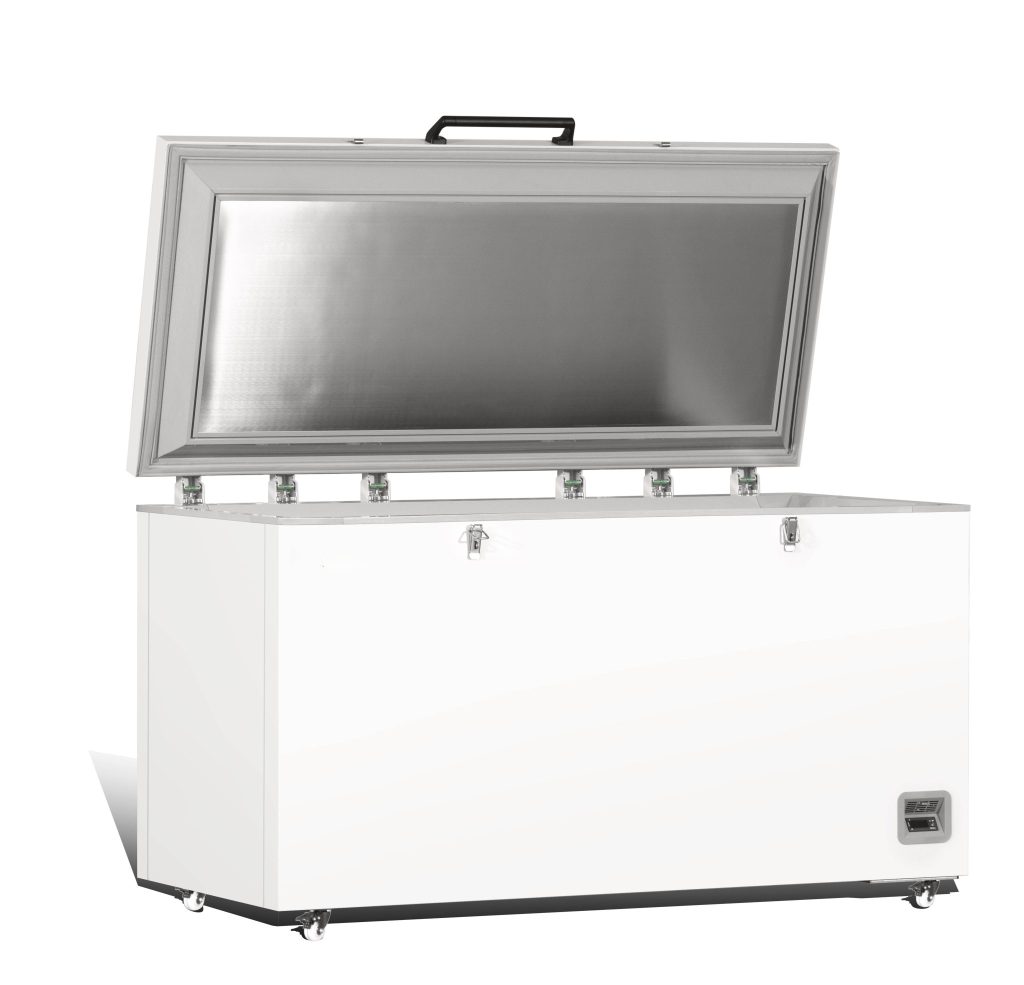

VS-25W450: EXTERNAL 1667W X 863D X 949H (mm)
VS-25W450: INTERNAL 1455W X 525D X 665H (mm)
VS-25W568: EXTERNAL 1870W X 745D X 805H (mm)
VS-25W568: INTERNAL 1709W X 550D X 625H (mm)
SCREEN
LED DISPLAY
MACHINE TYPE
FREEZER
WEIGHT
VS-25L106: 39Kg
VS-25L308: 100Kg
VS-25L518: 142Kg
VS-25W100: N/A
VS-25W300: N/A
VS-25W450: N/A
VS-25W568: 88Kg
NO. OF SHELVES
VS-25L106: 3
VS-25L308: 7
VS-25L518: 12
VS-25W100: 0
VS-25W300: 0
VS-25W450: 0

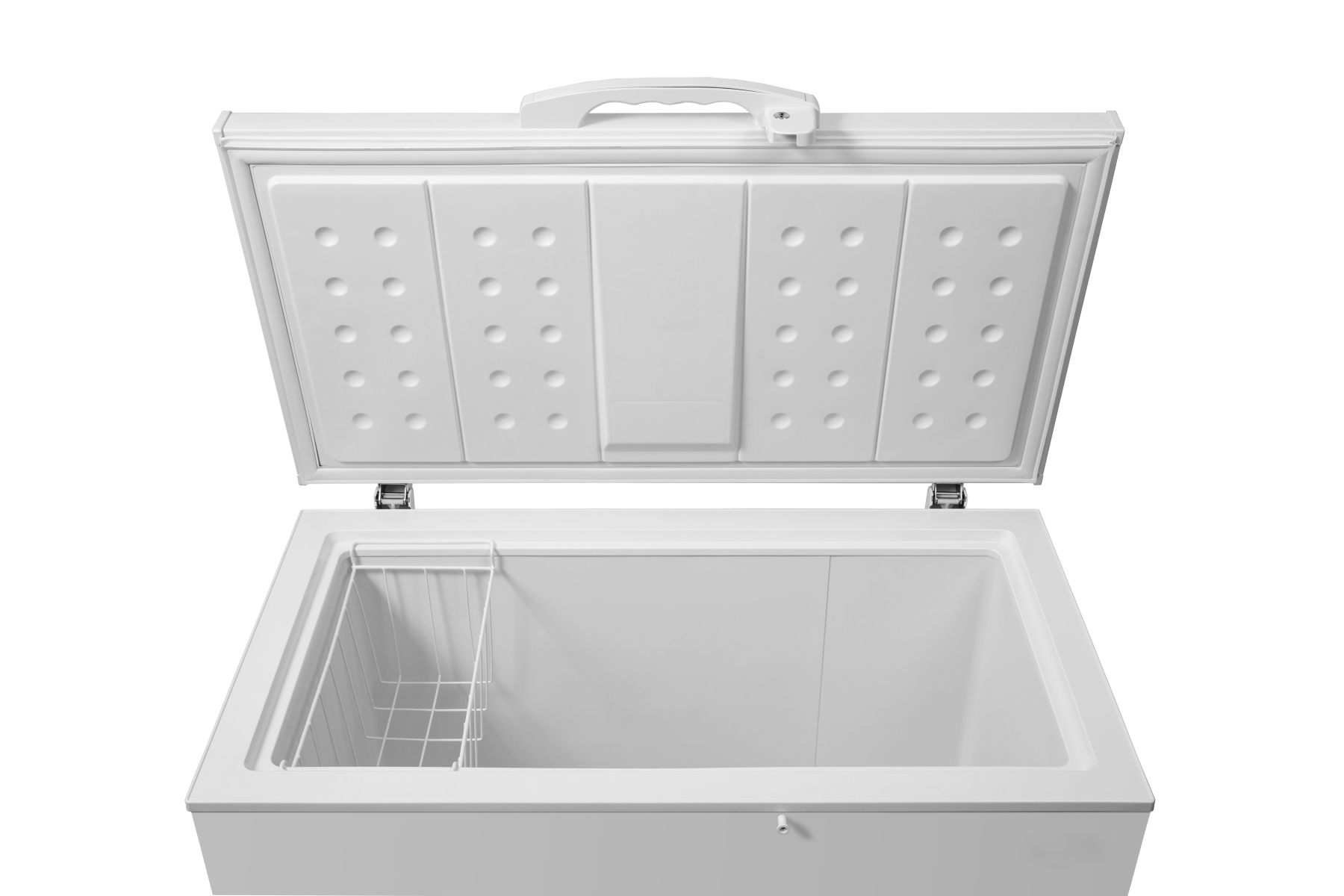

VS-25W568: 0 (+1 BASKETS)
CLIMATE CLASS
“N”
PORTHOLE
YES
Additional features
Built-In Backup Battery
Built in battery to display temperature when power is off.
LCD Display
High accuracy LCD displays.
Security
Audible and Visual Alarms. Safety Lock.
USB Data
Built in USB Data Logger. Data can be traced and exported.
Recommended accessories
Australia’s leading vaccine and medical cold storage manufacturer.
