Below Zero -40°C Freezers
Download SKU: VS-40L106 VS-40L308 VS-40L518 VS-40W100 VS-40W300 VS-40W368 VS-40W485
Vacc-Safe Below Zero -40°C Freezers
Select size:
Vacc-Safe Biomedical Freezers are designed for durability, consistency and accuracy. With Microcomputer Temperature Contollers these are suitable for any industry where temperature uniformity is required.
- Medical Freezers for -40 to -20°C
- Precise temperature control within +/- 1 degree variance
All Vacc-Safe® products are QCPP compliant, as approved by the Pharmacy Guild of Australia.
Key benefits

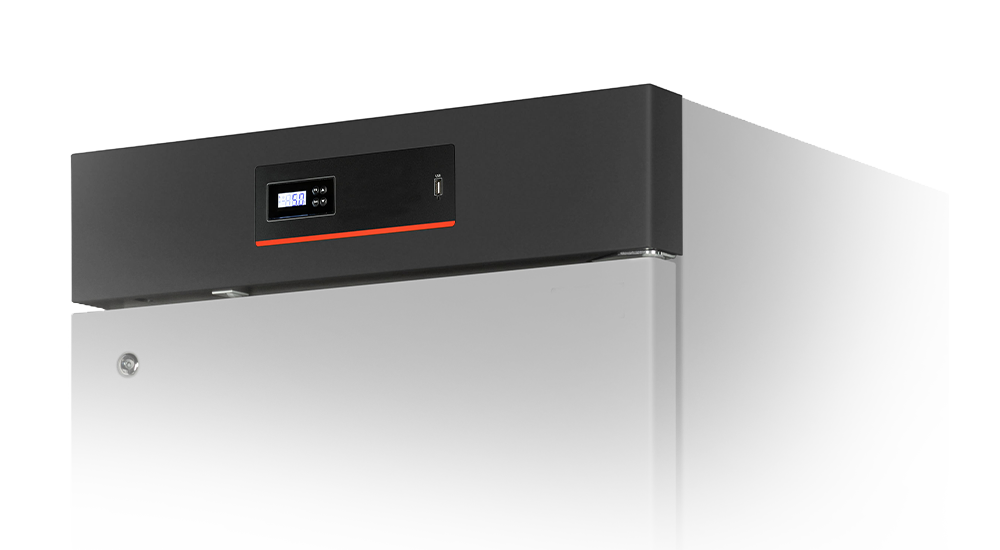

Microcomputer Temperature Control System
Microcomputer temperature control – temperature accuracy 0.1ºC Button-type control panel is easy to operate, the temperature and alarm settings can be adjusted on the panel.
Other cold storage units
- Unreliable temperature accuracy

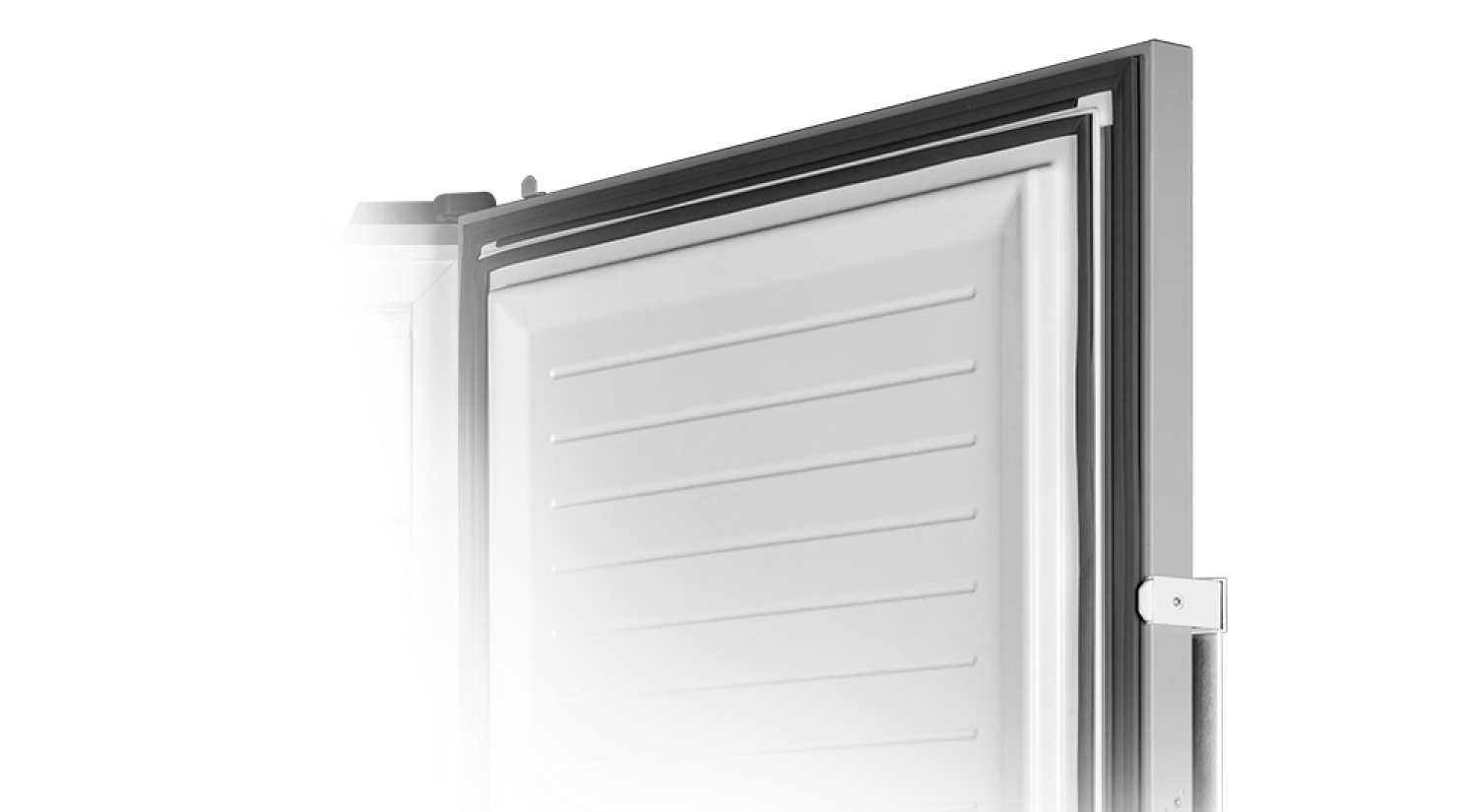

Three-dimensional Seal
The unique three-dimensional seal, through the double-layer door seal and the multi-layer airbag sealing design, can effectively reduce the leakage of cold air and achieve best thermal insulation performance.
Other cold storage units
- Leak cold air leading to poor insulation performance

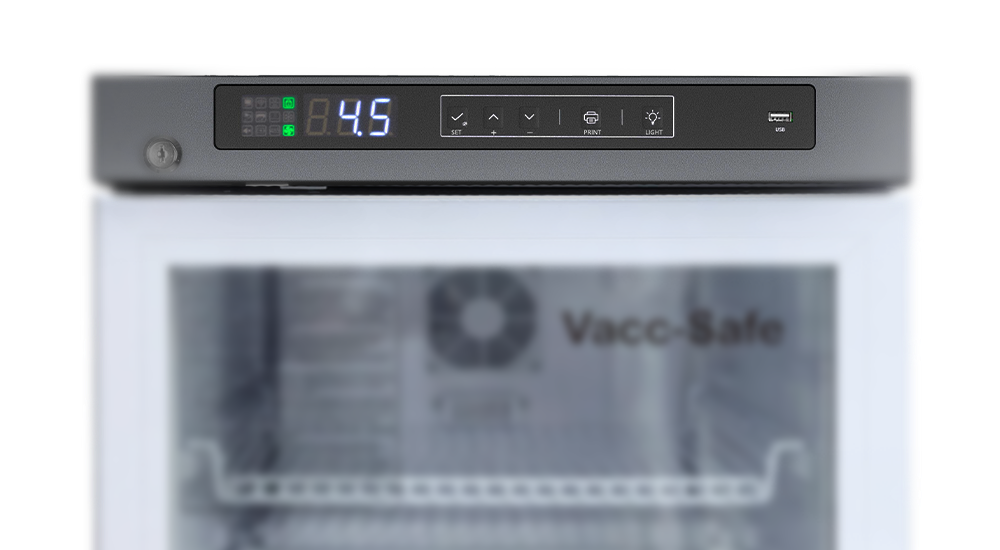

High Precision Temperature Control
Precise storing of vaccines, medicines and laboratory products, detecting within +/- 1 degree variance in temperature for real-time alert monitoring. LBA Foaming Technology provides more effective insulation to improve performance and reduce overall energy consumption.
Other cold storage units
- Unsatisfactory temperature uniformity
- High energy consumption
- Low performance insulation
Increased Product Lifespan
Dissipates heat 20% more effectively to improve life expectancy of core parts.
Other cold storage units
- Retain more heat leading to early part burn-out
Microcomputer Temperature Control System
Microcomputer temperature control – temperature accuracy 0.1ºC Button-type control panel is easy to operate, the temperature and alarm settings can be adjusted on the panel.
Other cold storage units
- Unreliable temperature accuracy
Three-dimensional Seal
The unique three-dimensional seal, through the double-layer door seal and the multi-layer airbag sealing design, can effectively reduce the leakage of cold air and achieve best thermal insulation performance.
Other cold storage units
- Leak cold air leading to poor insulation performance
High Precision Temperature Control
Precise storing of vaccines, medicines and laboratory products, detecting within +/- 1 degree variance in temperature for real-time alert monitoring. LBA Foaming Technology provides more effective insulation to improve performance and reduce overall energy consumption.
Other cold storage units
- Unsatisfactory temperature uniformity
- High energy consumption
- Low performance insulation
Increased Product Lifespan
Dissipates heat 20% more effectively to improve life expectancy of core parts.
Other cold storage units
- Retain more heat leading to early part burn-out
Specifications
TEMPERATURE RANGE
VS-40L106: -40 TO -20°C TEMPERATURE RANGE
VS-40L308: -40 TO -20°C TEMPERATURE RANGE
VS-40L518: -40 TO -20°C TEMPERATURE RANGE
VS-40W100: -40 TO -20°C TEMPERATURE RANGE
VS-40W300: -40 TO -20°C TEMPERATURE RANGE
VS-40W368: -40 TO -20°C TEMPERATURE RANGE
VS-40W485: -40 TO -20°C TEMPERATURE RANGE
LITRES
VS-40L106: 106 LITRE GROSS CAPACITY
VS-40L308: 314 LITRE GROSS CAPACITY
VS-40L518: 518 LITRE GROSS CAPACITY
VS-40W100: 100 LITRE CAPACITY
VS-40W300: 300 LITRE CAPACITY
VS-40W368: 368 LITRE CAPACITY
VS-40W485: 485 LITRE CAPACITY
DIMENSIONS
VS-40L106: EXTERNAL 595W X 615D X 812H (mm)
VS-40L106: INTERNAL 455W X 460D X 595H (mm)
VS-40L308: EXTERNAL 700W X 690D X 1920H (mm)
VS-40L308: INTERNAL 540W X 450D X 1277H (mm)
VS-40L518: EXTERNAL 866W X 811D X 1920H (mm)
VS-40L518: INTERNAL 680W X 620D X 650H (mm) per door
VS-40W100: EXTERNAL 694W X 686D X 942H (mm)
VS-40W100: INTERNAL 480W X 380D X 665H (mm)
VS-40W300: EXTERNAL 1210Wx833Dx941H (mm)
VS-40W300: INTERNAL 1000Wx520Dx665H (mm)
VS-40W368: EXTERNAL 1255W X 745D X 853H (mm)
VS-40W368: INTERNAL 870W X 550D X 648H (mm)
VS-40W485: EXTERNAL 1667W X 863D X 949H (mm)
VS-40W485: INTERNAL 1455W X 525D X 665H (mm)
SCREEN
LED DISPLAY
MACHINE TYPE
FREEZER
WEIGHT
VS-40L106: 43Kg
VS-40L308: 102Kg
VS-40L518: 142Kg
VS-40W100: N/A
VS-40W300: N/A
VS-40W368: 66Kg
VS-40W485: N/A
NO. OF SHELVES
VS-40L106: 3
VS-40L308: 7
VS-40L518: 12
VS-40W100: 0
VS-40W300: 0
VS-40W368: 0 (+1 BASKETS)
VS-40W485: 0
CLIMATE CLASS
“N”
PORTHOLE
YES
Additional features
Built-In Backup Battery
Built in battery to display temperature when power is off.
LCD Display
High accuracy LCD displays.
Security
Audible and Visual Alarms. Safety Lock.
USB Data
Built in USB Data Logger. Data can be traced and exported.
